Description

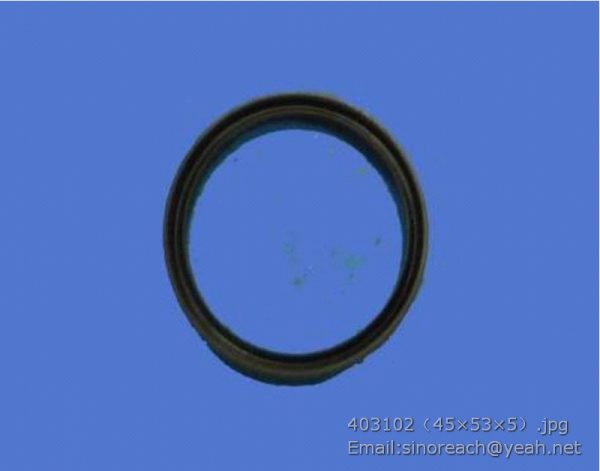

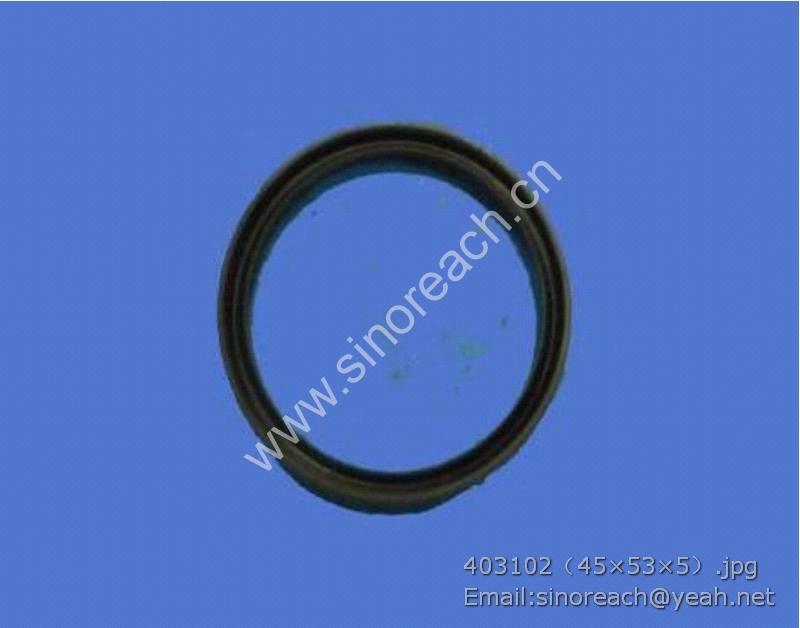

403102（45*53*5） LG853.03.01.01-002 oil seal for LONKING part

LG30F.06Ι-006 管夹 Pipe clip 1 LG30F.06004A
GB/T5782 螺栓M10×42 Bolt M10×42 1
LG30F.06.05 右转向油缸 Right steering cylinder 1 HSK80/45X315
LG30F.06Ι.08 前车架转向过渡接头 Front frame turning transit connector 1 LG30F.06002-002A
H-H/16/16-Ⅱ-L750 转向油缸/转向器回油胶管 Steering cylinder/gear oil-return hose 3
LG30F.06.03 左转向油缸 Left steering cylinder 1 HSK80/45X315
90H-H/16/16-Ⅱ-L550 转向油缸进油胶管 Steering cylinder oil-inlet hose 2
φ25×4-170 胶管 Hose 1
JB/T8870-1999 喉箍（φ32-38） Strap (φ32-38) 2
LG30F.06Ι-007 转向泵进油钢管 Steering pump oil-inlet pipe 1 306011-011D

GB/T6170 螺母 M10 Nut M10 1
GB/T93 垫圈10 Washer 10 5
GB/T97.1 垫圈10 Washer 10 1
LG853.06.02.01 方向盘总成 Steering wheel assembly 1 LG30/50D
LG853.06.02.02 导电套 Conduction bush 1 306114-115D
GB/T5783 螺栓M6×12 Bolt M6×12 4
GB/T93 垫圈6 Washer 6 5
LG853.06.02.03 组合开关固定板 Combined switch board 1 306110-111D
GB/T5783 螺栓M6×20 Bolt M6×20 1
GB/T6170 螺母M6 Nut M6 1
GB276-89 单列向心球轴承104 Single row radial ball bearing 104 1
LG30F.06Ⅲ.02-001 档位板 Shift plate 1 306112D
LG853.06.02-001 电锁固定板 Electric lock securing board 1 306113D
LG853.06.02.04 转向轴 Steering shaft 1 306104-105D
LG853.06.02.05 总外套管 Main external sleeve 1 306106-109D
GB/T5782 螺栓M10×85 Bolt M10×85 4
LG853.06.02.08 固定座 Securing seat 1
GB/T301-1995 滚动轴承51106 Roller bearing 51106 1
LG853.06.02-003 调整垫 Adjusting shim 1
LG30F.06.02.01 全液压转向机(带阀块) Hydraulic steering gear 1 BZZ1-E400C(FK143020)

ZL306300-30 活塞杆 Piston rod
A5 4030 N3587 防尘圈45×53×7 Dust ring 45×53×7
GB894.2-86 轴用弹性挡圈70 Elastic spacer for shaft 70
ZL306300-50 环 Ring
BS 4561 P5008 Y型圈45×60×11.4 Y-ring 45×60×11.4
ZL306300 弹簧挡圈80×4 Spring spacer 80×4
GB3452.1-82 ○形圈71×5.3 O-ring 71×5.3
OD 0450 052 00171 D OD密封圈45×60.1×6.3 OD seal 45×60.1×6.3
ZL306300-40 导向套 Guide sleeve
FR 4505 Q5029 支承环45×50×9.7 Support ring 45×50×9.7
FR 7506 Q5029 支承环75×80×9.7 Support ring 75×80×9.7
GB3452.3-88 ○形圈45×3.55 O-ring 45×3.55
OK 0080 00701 OK密封环80×59×8 OK seal 80×59×8
GB/T78-2000 螺钉M8×20 Screw M8×20
ZL306300-20 活塞 Piston
ZL306300-10 缸体 Cylinder body
GB893.2-86 挡圈62 Spacer 62
GB9163-90 关节轴承GE40ES Joint bearing GE40ES
GB2509-81 轴套40×48×45 Shaft sleeve 40×48×45
