Description

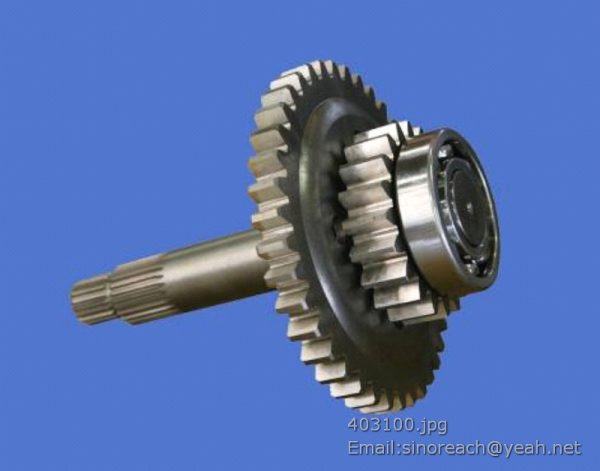

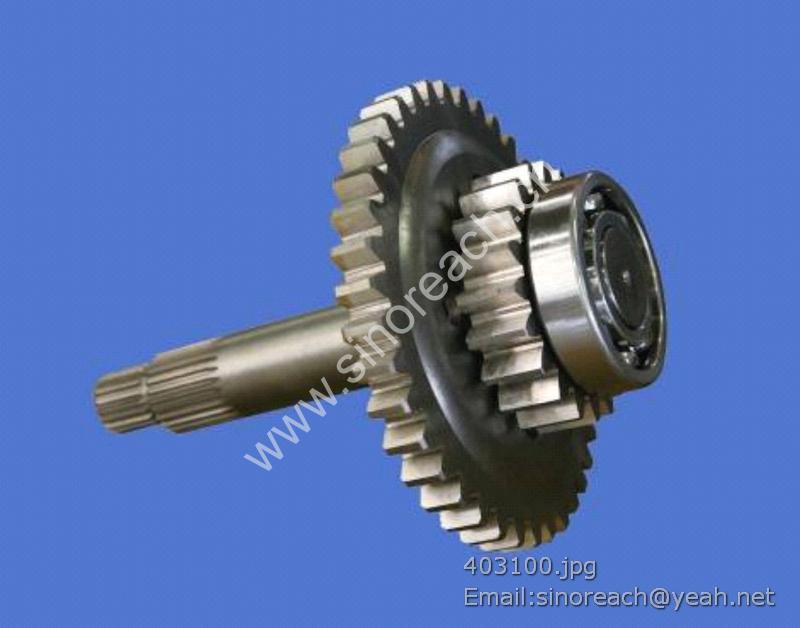

403100 LG853.03.01.01 Shaft I assembly for LONKING spare part

LG30F.04318A-319A 差速器壳总成 Differential case assembly
LG30F.04320A 锥齿轮 Bevel gear
LG30F.04321A 凸缘螺栓 Flange bolt
GB6187-86 螺母M14×1.5 Nut M14×1.5
LG30F.04322A 锥齿轮垫圈 Bevel ring gear
LG30F.04323A 十字轴 Spider
LG30F.04324A 半轴齿轮垫片 Axle shaft gear gasket
LG30F.04325A 半轴齿轮 Axle shaft gear

LG30F.04.06.01 轮辋体 Rim 1 304601-603D

LG30F.05Ⅲ.01 变速操纵总成 Speed control assembly 1 305000D
LG853.05.02 工作操纵总成 Implement control assembly 1

LG30F.05Ⅲ.01.01 变速操纵 Speed control 1 305100D
LG30F.05Ⅲ.01.02 球头连接杆 Spherical joint linkage 2 305300D
LG30F.05Ⅲ.01.03 变速操纵板 Speed control plate 1 305400D
GB/T5782 螺栓M12×120 Bolt M12×120 2
GB/T93 垫圈12 Washer 12 2

GB/T882 销轴B型12×35 Pin B type 12×35 2
GB/T97.1 垫圈12 Washer 12 2
GB/T91 开口销 4×28 Cotter pin 4×28 2
LG853.05.02-001 叉形接头 Knuckle connector 2 407610B
LG853.05.02-002 固定支板 Securing plate 1 407609C
LG853.05.02.01 操纵软轴 Control flexible shaft 2 407618-624B
GB/T5783 螺栓M10×30 Bolt M10×30 7
GB/T6170 螺母M10 Nut M10 3
GB/T882 销轴B型8×28 Pin B type 8×28 2
GB/T97.1 垫圈8 Washer 8 2
GB/T91 开口销3.2×30 Cotter pin 3.2×30 2
LG853.05.02-003 叉形接头 Knuckle connector 2 407607B
GB/T97.1 垫圈10 Washer 10 13
LG853.05.02.02 固定架 Securing bracket 1 407614-617B
LG853.05.02-004 铰轴座 Cardinal axis seat 2 407608B
LG853.05.02-005 铰轴套 Cardinal axis sleeve 2 407605B
GB/T5783 螺栓M10×35 Bolt M10×35 2
GB/T96 垫圈10 Washer 10 3
GB/T93 垫圈8 Washer 8 4
LG853.05.02-006 紧定螺钉 Setting screw 4 407606B
LG853.05.02-007 轴座 Shaft holder 1 407604B
LG853.05.02-008 挡圈 Spacer 2 407603B
GB/T93 垫圈10 Washer 10 13
