Description

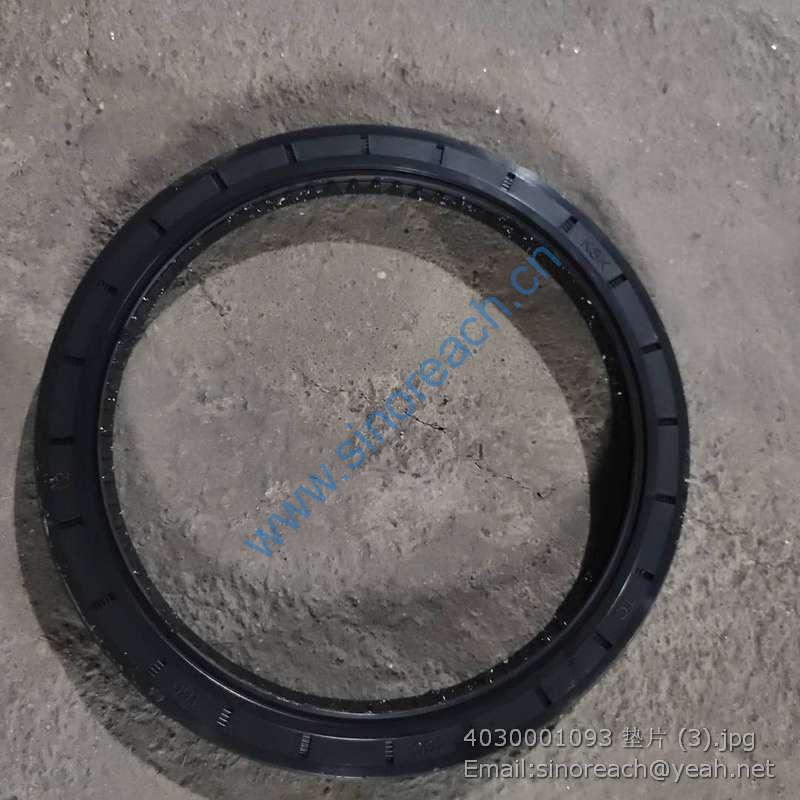

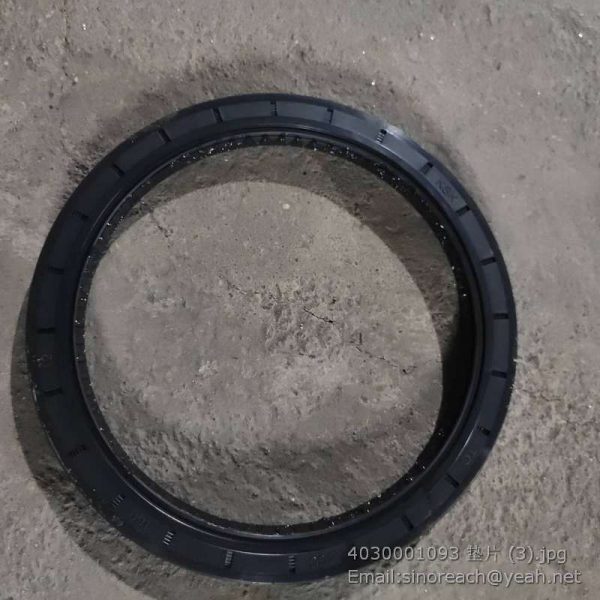

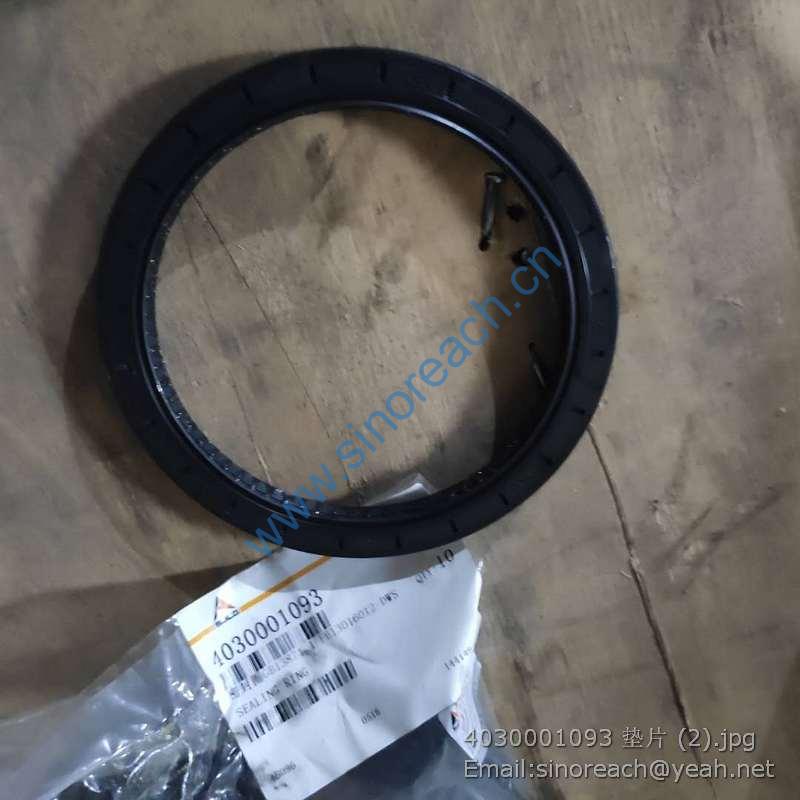

4030001093 sealing ring

1 4120002303102 安全阀XDY32G01-00A-17.5 Valve N 1
2 4120001054222 螺塞D32-3 Plug Y 3
3 4120001054223 O型圈GB1235-76 20X2.4 O-ring Y 3
4 4120001054221 转斗阀杆D32-12W-00 Valve rod Y 1
5 4120001054214 弹簧座D32-6 Spring seat Y 4
6 4120005199015 阀杆接头D32-21 Joint Y 2
7 4120001054215 弹簧D32-7 Spring Y 2
8 4120001054216 弹簧D32-8 Spring Y 2
9 4015000313 垫圈GB97.1-12-300HV Washer Y 2
10 4120005199017 螺栓M12×20 GB30-76 Screw Y 2
11 4120001054213 动臂阀杆D32-2W-00 Valve rod Y 1
12 4011000933 螺栓GB5782-M10*100-8.8 Screw Y 4
13 4015000322 垫圈GB97.1-10-300HV Washer N 8
14 4120001054219 端盖D32-5 Valve cover Y 2
15 4030000638 O形圈GB1235-60*3.1 O-ring Y 2
16 4120001133028 低压过载阀Y20G01-00A-12 Valve Y 1
17 4120002059003 高压过载阀D32A.1-00b-20 Valve Y 1
18 4120001054016 补油阀D32-15 Valve Y 1
19 4120001054209 弹簧D32-14 Spring Y 1
20 4030000760 O形圈GB1235-50*3.1 O-ring Y 3
21 4120001054207 补油阀盖D32-13 Valve cover Y 1
22 4120001054203 单向阀D32-17 Check valve Y 3
23 4120001054204 弹簧D32-16 Spring Y 3
24 4030000706 O形圈GB1235-44*3.5 O-ring Y 3
25 4120002303101 阀盖D32-19 Valve cover Y 3
26 4120001054238 端盖D32-1W Valve cover Y 2
27 2835000007030 螺栓M10*25(GB5782) Screw

1 4120001054006 阀体D32-4 Valve body N 1
2 7200001075 O形圈50*3.1 O-ring Y 2
3 4120001054004 端盖D32-1 Cover N 2
4 4120001054024 单向阀D32-17 Check valve N 3
5 4120001054023 弹簧D32-16 Spring Y 3
6 4030000706 O形圈GB1235-44*3.5 O-ring Y 3
7 4120001054022 阀盖D32-19 Valve cover N 3
8 4120001054016 补油阀D32-15 Valve Y 1
9 4120001054015 弹簧D32-14 Spring Y 1
10 7200001075 O形圈50*3.1 O-ring Y 1
11 4120001054207 补油阀盖D32-13 Valve cover Y 1
12 7200000446 O型圈 O-ring Y 1
13 4120004303005 盖板D32-11 Cover plate N 1
14 4011000087 螺栓GB5783-M12*20EpZn-8.8 Screw Y 2
15 4120002303007 转斗阀杆D32-12a Valve rod N 1
16 4120002303008 动臂阀杆D32-2a Valve rod N 1
17 4120005199015 阀杆接头D32-21 Joint Y 2
18 4120001054214 弹簧座D32-6 Spring seat Y 4
19 4120001054007 弹簧D32-8 Spring Y 2
20 4120001054215 弹簧D32-7 Spring Y 2
21 4011000087 螺栓GB5783-M12*20EpZn-8.8 Screw Y 2
22 4030000608 PO形圈GB1235-60*3.1 O-ring Y 2
23 4120001054219 端盖D32-5 Valve cover Y 2
24 4120001054222 螺塞D32-3 Plug Y 2
25 4030000011 O形圈GB1235-20*2.4 O-ring Y 2
26 4120002303009 过载溢流阀YF08-11-00 Safety valve N 2
27 4120002303001 安全阀D32.2a-00 Relief valve Y 1
28 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 2
29 4014000217 螺钉GB70.1-M10*100EpZn-8.8 Screw Y 4
30 4015000025 垫圈GB93-10-65Mn Spring washer Y 8

1 4120001133004 阀体22010101210 01-HVY32.2-01 Valve body Y 1
2 4120001133005 翻斗阀杆22010201210 HVY32.2-02 Valve rod Y 1
3 4120001133006 动臂阀杆22010201210 HVY32.2-03 Valve rod Y 1
4 4120002038124 堵塞22011000110 Plug Y 1
5 4120002432109 O型圈32X3.1-GB1235 43010100700 O-ring Y 1
6 4120001133008 矩形密封圈44020101000 YII7445 Sealing ring Y 2
7 4120001133009 复位弹簧22010401210 HVY32.2 50CrVA Spring Y 2
8 4120001133010 弹簧22010402210 HVY32.2 50CrVA Spring Y 2
9 4120001133011 大端盖22010702210 HVY32.2 HT250 Cover Y 2
10 4120001133012 弹簧座22010801210 HVY32.2 35 Spring seat Y 4
11 4120001133013 垫圈22011101210 HVY32.2 65Mn Washer Y 2
12 4120002303013 螺栓M12*25-GB5781 41020101000 Screw Y 2
13 4014000217 螺钉GB70.1-M10*100EpZn-8.8 Screw Y 4
14 4120000675418 弹簧垫圈10GB93-1987 Washer Y 8
15 4120001133014 堵头22011201210 HVY32.2 35 Plug Y 3
16 4120001133015 轴承22011401210 HVY32.2 Bearing Y 3
17 4120001133016 弹簧22010403210 HVY32.2 50CrVA Spring Y 3
18 4120001133017 阀芯22011601210 HVY32.2 40Cr Valve body Y 3
19 4120001133018 堵头22011202210 HVY32.2 40Cr Plug Y 3
20 4120001133019 安全阀组件46000000700 HVY32.2 Safety valve Y 1
21 4120001133020 阀芯22011602210 HVY32.2 Valve body Y 1
22 4120001133021 弹簧22010404210 HVY32.2 50CrVA Spring Y 1
23 4120001133022 堵头22011204210 HVY32.2 45 Plug Y 1
24 4120002303014 过载阀组件46000001800 Control valve Y 1
25 4120001133024 小端盖22012402210 HVY32.2 HT250 Cover Y 2
26 4014000135 螺钉GB70.1-M10*40EpZn-8.8 Screw Y 4
27 4120001133025 矩形密封圈44020100900 YII7445 Sealing ring Y 2
28 4120002303012 O形圈43.7*3.55 43010102900 O-ring Y 1
29 4120002303011 O形圈37.5*3.55 43010102800 O-ring Y 3
30 4120002303010 O形圈22*2.4 43010102700 O-ring Y 3
