Description

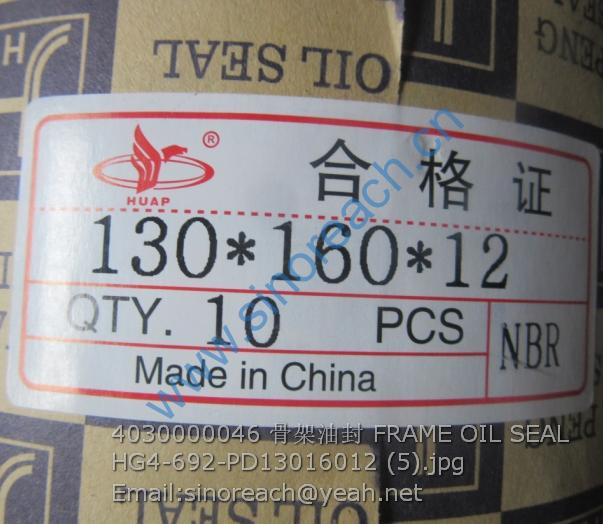

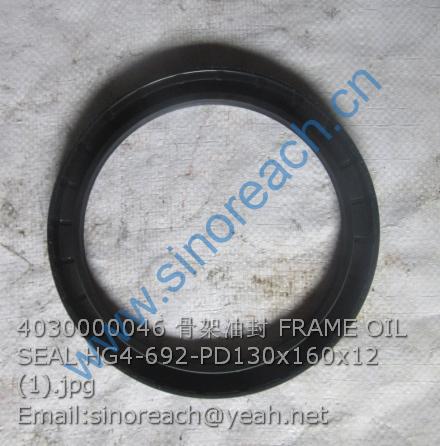

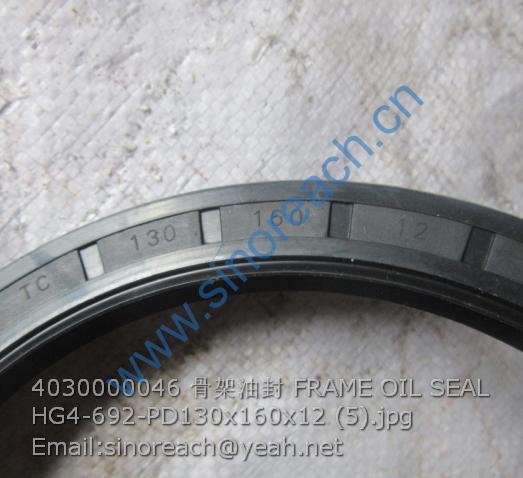

4030000046 FRAME OIL SEAL HG4-692-PD130x160x12 Wheel Loader Spare Parts LG936

1 29100026861 液压油箱 Hydraulic fluid tank Y 1
2 4120000099 球阀MBS216-1/2″ Valve Y 1
3 29100009061 放油接头 Nipple Y 1
4 4011000449 螺栓GB16674-M16*35EpZn-8.8 Bolt Y 4
5 4041000708 堵塞LGB142-03620 Plug Y 1
6 4030000504 O形圈GB3452.1-25.8*1.80G O-ring Y 1
7 4041000680 堵塞LGB142-03016 Plug Y 1
8 4030000241 O形圈GB3452.1-20.0*1.80G O-ring

1 29100026871 液压油箱体 Hydraulic fluid tank N 1
2 4120003116 液位计YWZ-127-LG Water level gauge Y 1
3 4011000458 螺栓GB16674-M8*20EpZn-8.8 Bolt Y 16
4 4030000232 O形圈GB3452.1-170*3.55G O-ring Y 2
5 29100023001 回油法兰盖 Flange Y 1
6 29100000051 弹簧 Spring Y 1
7 29100000061 液压油箱回油滤芯 Filter insert Y 1
8 4120000452 加油滤芯SFM-323M Filter insert Y 1
9 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 4
10 4120001088 换气过滤器L1.0807-31 Breather cap Y 1
11 29100023161 呼吸器法兰盘 Flange Y 1
12 4030000598 O形圈GB3452.1-230*5.30G O-ring Y 1
13 4011000474 螺栓GB16674-M10*25EpZn-8.8 Bolt Y 8
14 4030000177 O形圈GB3452.1-206*5.30G O-ring Y 2
15 29100023041 吸油上部法兰 Flange Y 1
16 4041000774 螺塞LGB135-01422 Plug Y 6
17 4041000767 O形圈LGB168-11124 O-ring Y 6
18 4011000164 螺栓GB16674-M10*35EpZn-8.8 Bolt Y 8
19 29100010111 维修侧板 Plate Y 2
20 29100026621 吸油法兰 Flange Y 1
21 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 8
22 4011000102 螺栓GB5783-M8*16EpZn-8.8 Bolt Y 8
23 29100008761 法兰盖 Flange Y 1
24 4041000508 螺塞LGB135-01824 Plug Y 2
25 4041000768 O形圈LGB168-11524 O-ring Y 2
26 4190000008 环形磁铁LG03-CT76*32*15 Magnet Y 1
27 4011000481 螺栓GB16674-M8*30EpZn-8.8 Bolt Y 8
28 4041000777 螺塞LGB135-02227 Plug Y 1
29 4041000771 O形圈LGB168-11924 O-ring Y 1
30 29100023121 回油法兰 Flange Y 1

31 29100023151 磁铁 Magnet Y 1
32 4030000633 O形圈GB3452.1-128*3.55G O-ring Y 1
33 4041001056 螺塞LGB135-01219 Plug Y 1
34 4041000784 O形圈LGB168-10924 O-ring Y 1
