Description

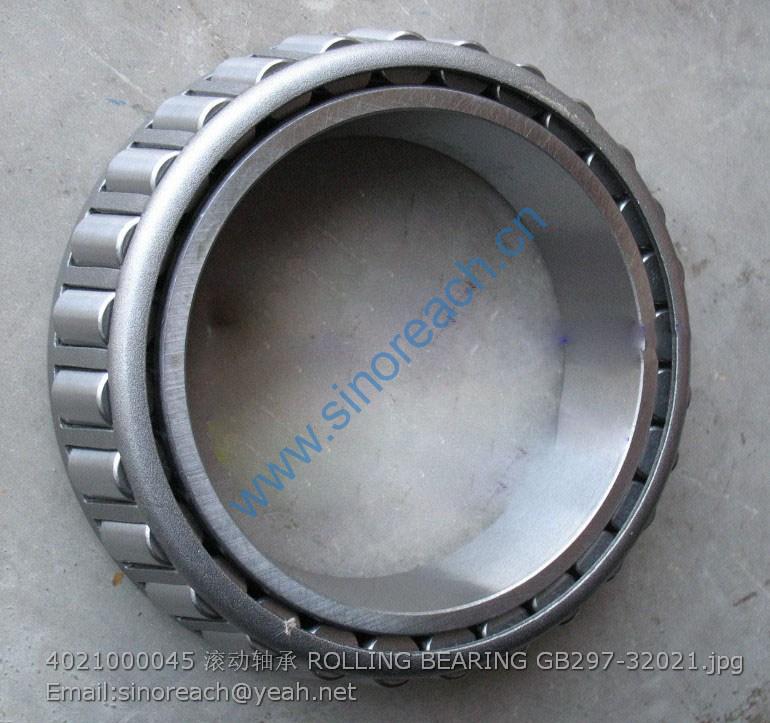

4021000045 ROLLING BEARING GB297-32021 SDLG  parts for SDLG wheel loader LG936

1 4030001093 密封圈GB13871.1-FB13016012-DWS Sealing ring Y 1
2 4030000046 骨架油封HG4-692-PD130*160*12 Sealing ring Y 1
3 4021000045 滚动轴承GB297-32021 Roller bearing Y 1
4 4021000044 滚动轴承GB297-32220 Roller bearing Y 1
5 29070024101 轮辋螺栓 Screw Y 10
6 29070019751 垫片18 Washer Y 24
7 4013000407 螺母GB6171-M18*1.5flZnyc-8-480 Nut Y 10
8 29070024091 防尘罩 Cover Y 1
9 29070019811 内齿圈 Ring gear Y 1
10 29070021441 磁性螺塞 Plug Y 1
11 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 10
12 4015000025 垫圈GB93-10-65Mn Spring washer Y 10
13 29070007671 盖 Cover Y 1
14 29070009161 定位块 Block Y 1
15 4090000006 钢球GB308-17.462-GCr15 Ball Y 1
16 4015000408 挡圈GB894.1-42-65Mn Retaining ring Y 1
17 29070019821 太阳轮 Sun gear Y 1
18 29070024081 垫片 Shim Y 1
19 29070007681 O型密封圈 O-ring Y 1
20 4014000118 螺钉GB70-M8*1*20-8.8 Screw Y 2
21 29070024171 圆螺母 Round nut Y 1
22 29070019841 O形圈 O-ring Y 1
23 29070019852 轮毂 Hub Y 1
24 29070020651 制动盘 Brake disc Y 1
25 4011001431 螺栓GB5786-M18*1.5*50flZnyc-8.8-480 Bolt Y 14
26 29070024121 行星轮架总成 Planet gear kit Y 1
27 29070019801 行星轮架 Planet carrier Y 1
28 29070019831 行星齿轮 Planet gear Y 4
29 3050900042 挡环 Retaining ring Y 8
30 29070013181 垫片 Shim Y 8

31 4090000007 钢球GB308-8-GCr15 Ball Y 4
32 3050900043 行星齿轮轴 Planet gear shaft Y 4
33 4090000003 滚针GB309-4*38-GCr15 Needle roller Y 112

1 4120001739050 内钳体JF.A.ZL4050.01 Pliers Y 1
2 4120001739051 活塞JF.A.ZL4050.09 Cylinder piston N 4
3 4120001739052 矩形密封圈JF.A.ZL4050.07 Sealing ring Y 4
4 4120001739053 防尘罩JF.A.ZL4050.08 Dust cover Y 4
5 4120001739054 外钳体JF.A.ZL4050.01 Pliers Y 1
6 4120001739055 卡圈JF.A.ZL4050.11 Retaining ring Y 4
7 4120002669004 O型圈24002000 ZBJ22002-88（氟橡胶） Sealing ring Y 2
8 4120001739057 螺栓M22 JF.A.ZL4050.13 Bolt Y 4
9 4015000087 垫圈GB93-22-65Mn Spring washer Y 4
10 4120002669005 O型圈24001600 ZBJ22002-88（氟橡胶） Sealing ring Y 2
11 4120001739058 放气嘴座JF.A.ZL4050.05 Seat Y 2
12 4120001739059 放气嘴JF.A.ZL4050.04 Nipple Y 2
13 4120001739016 制动片JS-ZL50-012 Brake plate Y 2
14 4120001739061 销子JF.A.ZL4050.A.12 Pin Y 2
15 4016000264 开口销GB91-2.5*32EpZn-Q235A Split pin Y 2
16 4120001739062 橡皮帽JF.A.ZL4050.03 Cover Y 2
17 4120001739063 皮塞JF.A.ZL4050.10 Plug Y 1

1 3050900002 螺栓 Bolt Y 16
2 4013000073 螺母GB889.2-M14*1.5EpZn-8 Lock nut Y 20
3 29080009101 LG933L传动轴组 Propeller shaft N 1
4 4011000568 螺栓GB5786-M12*1.25*40EpZn-10.9 Bolt Y 2
5 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 2
6 4013000072 螺母GB889.2-M12*1.25EpZn-10 Lock nut Y 2
7 4011000125 螺栓GB5786-M12*1.25*35EpZn-8.8 Bolt Y 4
8 4013000126 螺母GB889.2-M12*1.25EpZn-8 Lock nut Y 8
9 2050900009 前传动轴 Propeller shaft Y 1
10 2050900015 中传动轴 Propeller shaft Y 1
11 4110003176 传动轴P39*492 Propeller shaft Y 1
12 2020900051 主传动轴 Propeller shaft Y 1
13 4110000177001 突缘叉2201C-023 Link yoke Y 3
14 4110002170006 卡簧2201C-026 Retaining ring Y 20
15 4110000490001 万向节十字轴总成EQ140-39118 Spider Y 3
16 4110002170001 突缘叉2201D-023D Flange yoke Y 2
17 4110002086003 油杯M6 JB/T7940.1-1995 Grease cup N 2
18 4110003176001 十字轴总成EQ140-39118-T Cross shaft Y 2
19 2020900051020 突缘叉EQ130.12 Lug fork eq130.12 N 2
20 2050900009011 十字轴总成EQ140A Spider N 2
21 4015000249 P挡圈GB893.1-35-65Mn Retaining ring Y 8
22 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 1

1 29070024211 车轮总成 Wheel N 2
2 29090014301 AK16A后驱动桥总成 Rear axle Y 1
3 4011000118 螺栓GB5785-M24*2*90EpZn-8.8 Bolt Y 8
4 4013000157 螺母GB889.2-M24*2EpZn-8 Lock nut Y 8
5 4110000003 轮胎GB2980-17.5-25 Tire N 2
6 4110002816 轮辋LG14.00/1.5-25 Wheel rim Y 2
