Description

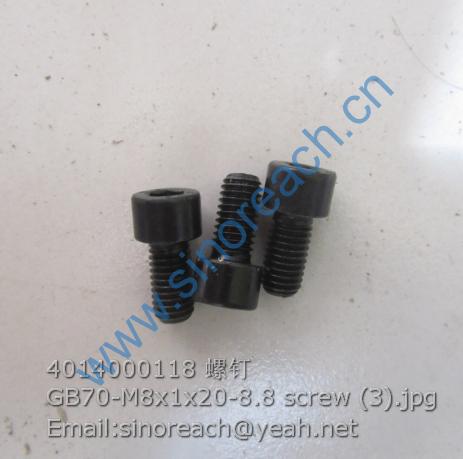

4014000118 screw GB70-M8x1x20-8.8 SDLG

1 3030900177 输入一级齿轮 Drive shaft gear Y 1
2 3030900178 输入二级齿轮 Drive shaft gear Y 1
3 3030900110 旋转油封 Sealing ring Y 1
4 3030900111 旋转油封 Sealing ring Y 1
5 4021000023 滚动轴承GB276-6311 Ball bearing Y 1
6 4021000013 滚动轴承GB276-6016 Ball bearing Y 1
7 4021000040 滚动轴承GB301-51111 Ball bearing Y 1
8 29050018221 调整垫片 Shim Y 1
9 29050018231 调整垫片 Shim Y 1
10 29050018241 调整垫片 Shim

1 4011001358 螺栓GB5783-M10*30flZnyc-10.9-480 Screw Y 2
2 4015000384 防松垫圈NASM1312-7-NL10 Washer Y 2
3 29050011161 垫圈 Washer Y 1
4 4030000536 O形圈GB3452.1-122*3.55G O-ring Y 4
5 29050017481 油封座 Sealing retainer Y 2
6 4021000024 滚动轴承GB276-6312 Ball bearing Y 2
7 29050017461 输出轴 Output shaft Y 1
8 3030900121 输出轴齿轮 Drive shaft gear Y 1
9 29050016931 挡圈 Retaining ring Y 2
10 4030000768 密封圈GB13871.1-FB070095-F Sealing ring Y 2
11 29050018381 O型圈 O-ring Y 2
12 4013000066 螺母GB889.2-M33*1.5-8 Lock nut Y 1
13 29070000221 垫圈 Washer Y 1
14 29050012751 调整垫片 Shim Y 2
15 29050012741 调整垫片 Shim Y 2
16 29050012731 调整垫片 Shim Y 2
17 29050017471 密封套 Sealing sleeve Y 2

1 4021000020 滚动轴承GB276-6211 Ball bearing Y 1
2 4013000036 螺母GB6171-M10*1EpZn-8 Nut Y 20
3 4015000025 垫圈GB93-10-65Mn Spring washer Y 20
4 29050019581 中间输入轴 Input shaft Y 1
5 4021000055 滚动轴承GB276-6010E Ball bearing Y 1
6 4015000015 挡圈GB893.1-80-65Mn Retaining ring Y 1
7 29050019561 隔离套 Sleeve N 1
8 29050019491 挡环 Retaining ring N 1
9 29050019501 内环凸轮 Cam N 1
10 29050019601 内环凸轮 Cam N 1
11 29050024291 弹簧 Spring Y 40
12 29050024301 柱销 Pin Y 40
13 29050019541 滚柱Φ15*32 Roller Y 20
14 29050019511 挡板 Plate N 1
15 29050019481 螺栓 Screw N 20
16 29050019571 外环齿轮 Gear N 1
17 4021000057 滚动轴承GB276-6210E Ball bearing Y 2
18 29050019551 间隔环 Spacer ring
