Description

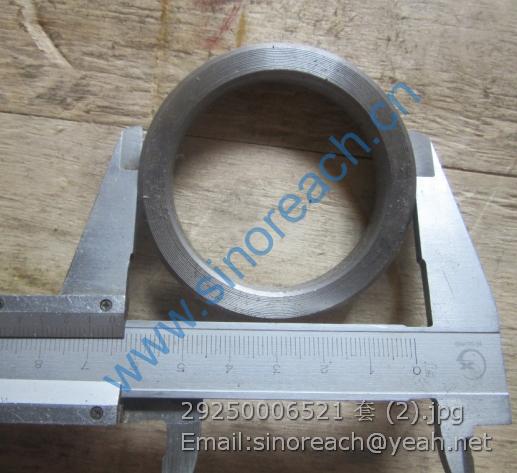

29250006521 bush SDLG
1 3050900052 垫片 SPACER Y 6
2 3050900042 挡环 RING SNAP Y 6
3 3050900041 行星齿轮 PLANET GEAR Y 3
4 4090000003 滚针GB309-4*38-GCr15 ROLLER PIN GB309-4*38-GCR15 Y 84
5 3050900003 轮辋螺母 RIM NUT Y 10
6 3050900044 轮辋螺栓 RIM BOLT Y 10
7 3050900050 半轴 DIFFERENTIAL AXLE Y 1
8 4013000136 螺母GB6171-M18*1.5EpZn-8 NUT GB6171-M18*1.5EpZn-8 N 10
9 4015000029 垫圈GB93-18-65Mn WASHER GB93-18-65Mn N 10
10 3050900046 轮毂 HUB WHEAL Y 1
11 29070007661 行星轮架 PLANET WHEEL CARRIER Y 1
12 4090000007 钢球GB308-8-GCr15 STEEL BALL GB308-8-GCr15 N 3
13 3050900043 行星齿轮轴 PLANET PINION SHAFT Y 3
14 4120000080 螺塞Q/ZB286-ZG3/4″-Q235A PLUG Q/ZB286-ZG3/4″-Q235A Y 1
15 29070007681 O型密封圈 O-SEALING RING Y 1
16 4090000006 钢球GB308-17.462-GCr15 STEEL BALL GB308-17.462-GCr15 Y 1
17 29070009161 定位块 LOCK BLOCK Y 1
18 3050900040 太阳轮 19 4015000046 挡圈GB894.1-50-65Mn SNAP RING GB894.1-50-65Mn N 1
20 29070007671 盖 COVER Y 1
21 4015000025 垫圈GB93-10-65Mn WASHER GB93-10-65Mn N 10
22 4011000084 螺栓GB5783-M10*30EpZn-8.8 BOLT GB5783-M10*30EpZn-8.8 N 10
23 4014000118 螺钉GB70-M8*1*20-8.8 SCREW GB70-M8*1*20-8.8 N 1
24 3050900047 圆螺母 ROUND NUT Y 1
25 3050900037 内齿轮 INNER GEAR Y 1
26 3050900045 O形圈 O-RING Y 1
27 4021000044 滚动轴承GB297-32220 ROLLING BEARING GB297-32220 Y 1
28 4021000045 滚动轴承GB297-32021 ROLLING BEARING GB297-32021 Y 1
29 3050900051 轴承隔套 ISOLATED BUSHING Y 1
30 4030000046 骨架油封HG4-692-PD130*160*12 FRAME OIL SEAL HG4-692-PD130*160*12 Y 1
31 3050900048 垫片 SPACER Y 1
32 3050900049 油封端盖 COVER OF OIL SEAL Y 1
33 4015000036 垫圈GB93-8-65Mn WASHER GB93-8-65Mn N 6
34 4011000195 螺栓GB5783-M8*35EpZn-8.8 BOLT GB5783-M8*35EpZn-8.8 N 6 1 4013000066 螺母GB889.2-M33*1.5-8 NUT GB889.2-M33*1.5-8 N 1
2 3050900007 垫圈 WASHER Y 1
3 2050900011 输入法兰 INPUT FLANGE Y 1
4 4030000048 骨架油封HG4-692-SG70*95*12 FRAME OIL SEAL HG4-692-SG70*95*12 Y 1
5 3050900009 密封盖 SEALED COVER Y 1
6 4011000067 螺栓GB5782-M14*55EpZn-8.8 BOLT GB5782-M14*55EpZn-8.8 N 7
7 4015000027 垫圈GB93-14-65Mn WASHER GB93-14-65Mn N 7
8 3050900172 垫片 SHIM Y 1
9 4021000028 滚动轴承GB297-31310 BEARING GB297-31310 Y 1
10 3050900013 轴承套 BEARING HOLDER Y 1
11 3050900008 0型密封圈 O-RING Y 1
12 4011000186 螺栓GB5782-M12*55EpZn-8.8 BOLT GB5782-M12*55EpZn-8.8 N 1
13 4015000026 垫圈GB93-12-65Mn WASHER GB93-12-65Mn N 15
14 3050900011 调整垫片 ADJUST SHIM Y 1
15 3050900030 垫片 SHIM Y 1
16 3050900012 轴套 BOSS Y 1
17 4021000029 滚动轴承GB297-31311 ROLLING BEARING GB297-31311 Y 1
18 4011000124 螺栓GB5786-M12*1.25*35EpZn-10.9 BOLT GB5786-M12*1.25*35EpZn-10.9 N 14
