Description

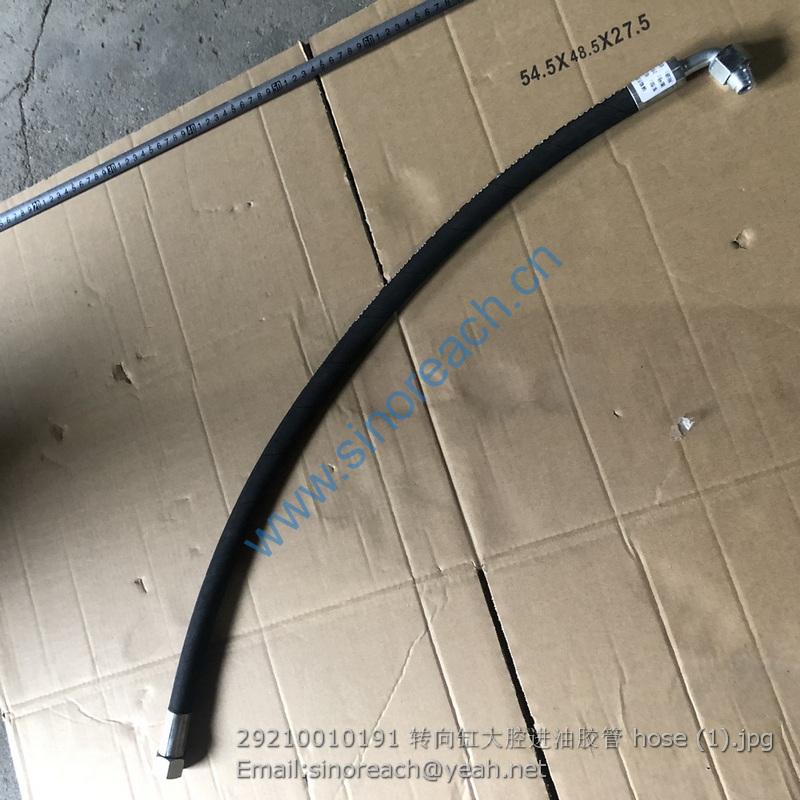

29210010191 hose SDLG

1 4120007561 左转向油缸HSGL-80*50*480-870C Steering cylinder Y 1
2 4120007562 右转向油缸HSGL-80*50*480-870C Steering cylinder Y 1
3 29210010181 转向缸小腔进油胶管 Hose assembly Y 2
4 29210010191 转向缸大腔进油胶管 Hose assembly Y 2
5 4041000143 直接头LGB120-02222 Nipple Y 6
6 4041000771 O形圈LGB168-11924 O-ring Y 6
7 29210010651 分流块 Block Y 1
8 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 2
9 4041000508 螺塞LGB135-01824 Plug Y 4
10 4041000768 O形圈LGB168-11524 O-ring Y 4
11 4041002502 软管LGB127-006047 Hose assembly Y 1
12 4041001667 软管LGB127-006051 Hose Y 1

1 4120007561001 缸筒总成-左24A141290 Cylinder tube Y 1
2 4120005995002 活塞杆总成24A114170 Piston rod Y 1
3 4120008298003 缸盖24C105280 Cover Y 1
4 4120006629004 衬套24S250251 Bushing Y 1
5 4120006629005 钢丝挡圈-孔用24C090100 Retaining ring Y 1
6 4120006629006 密封件-缓冲24H005004 Sealing ring N 1
7 4120005996004 密封件-活塞杆24F205003 Sealing ring N 1
8 4120008232002 挡圈-U形圈24E00502C Retaining ring N 1
9 4120005996005 密封件-防尘24D205002 Sealing ring N 1
10 4120006629009 钢丝挡圈-孔用24C090130 Retaining ring Y 1
11 4120006310007 O形圈24K10750A O-ring N 1
12 4120008298008 挡圈-O形圈24M10800C Sealing ring N 1
13 4120006310009 O形圈24K308001 O-ring N 1
14 4120008298009 活塞24C106230 Piston Y 1
15 4120006310016 密封件-活塞24P208002 Sealing ring N 1
16 4120005996008 O形圈24K10500A Sealing ring N 1
17 4120008298012 挡圈-O形圈24M10550C Sealing ring N 1
18 4120005559012 支承环24G208021 Sealing ring N 2
19 4120006603018 钢球24U004001 Ball Y 1
20 4120006316010 螺钉-内六角凹端紧定24T906121 M6*12L Screw Y 1
21 4120005996003 轴套24C116070 Bushing Y 1
22 4120005996010 销边防尘24R304530 Sealing ring Y 2
23 4120007561002 密封件维修包24A103920S Sealing kit Y 1

1 4120007562001 缸筒总成-右24A141320 Cylinder tube Y 1
2 4120005995002 活塞杆总成24A114170 Piston rod Y 1
3 4120008298003 缸盖24C105280 Cover Y 1
4 4120006629004 衬套24S250251 Bushing Y 1
5 4120006629005 钢丝挡圈-孔用24C090100 Retaining ring Y 1
6 4120006629006 密封件-缓冲24H005004 Sealing ring N 1
7 4120005996004 密封件-活塞杆24F205003 Sealing ring N 1
8 4120008232002 挡圈-U形圈24E00502C Retaining ring N 1
9 4120005996005 密封件-防尘24D205002 Sealing ring N 1
10 4120006629009 钢丝挡圈-孔用24C090130 Retaining ring Y 1
11 4120006310007 O形圈24K10750A O-ring N 1
12 4120008298008 挡圈-O形圈24M10800C Sealing ring N 1
13 4120006310009 O形圈24K308001 O-ring N 1
14 4120008298009 活塞24C106230 Piston Y 1
15 4120006310016 密封件-活塞24P208002 Sealing ring N 1
16 4120005996008 O形圈24K10500A Sealing ring N 1
17 4120008298012 挡圈-O形圈24M10550C Sealing ring N 1
18 4120005559012 支承环24G208021 Sealing ring N 2
19 4120006603018 钢球24U004001 Ball Y 1
20 4120006316010 螺钉-内六角凹端紧定24T906121 M6*12L Screw Y 1
21 4120005996003 轴套24C116070 Bushing Y 1
22 4120005996010 销边防尘24R304530 Sealing ring Y 2
23 4120007562002 密封件维修包24A103930S Sealing kit Y 1

1 4120002330 接头GE10L7/16UNFOMDCF Nipple Y 4
2 4041002254 软管LGB128-004040 Hose assembly Y 2
3 4120002168 三通接头EL10LOMDCF Three-way nipple N 2
4 4041000994 软管LGB128-404075 Hose Y 1
5 4041000508 螺塞LGB135-01824 Plug Y 1
6 4041000768 O形圈LGB168-11524 O-ring Y 3
7 4041002774 直接头LGB120-01818*80 Nipple Y 2
8 4041001399 软管LGB125-005140 Pipe Y 2
9 29220022791 压板 Plate Y 2
10 4011001425 螺栓GB16674.1-M8*40flZnyc-8.8-480 Bolt Y 2
11 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 2
12 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 7
13 29220022771 钢管支架 Bracket Y 1
14 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 7
15 4190000147 接头GE12L9/16UNFOMDA3C Nipple Y 6
16 4120004396 串联踏板阀06-466-218 Brake valve Y 1
17 4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 Screw Y 2
18 4190000141 接头EW12LOMDA3C Nipple Y 9
19 4041000844 软管LGB128-005060 Hose Y 2
20 29220022741 过渡管A Tube Y 1
21 29220022761 过渡管B Tube Y 1
22 4041002412 管夹LGB169-A20*10 Clamp Y 2
23 4011001313 螺栓GB16674.1-M8*12flZnyc-8.8-480 Screw Y 2
24 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 2
25 4041002710 软管LGB128-005045 Hose assembly Y 1
26 4041001986 软管LGB128-005043 Hose assembly Y 2
27 4190000143 三通接头EL12LOMDA3C Three-way nipple Y 2
28 29220012581 变径接头 Nipple Y 2
29 4030000894 O形圈GB3452.1-43.7*2.65G O-ring Y 2
30 4041001908 软管LGB128-005035 Hose Y 1
