Description

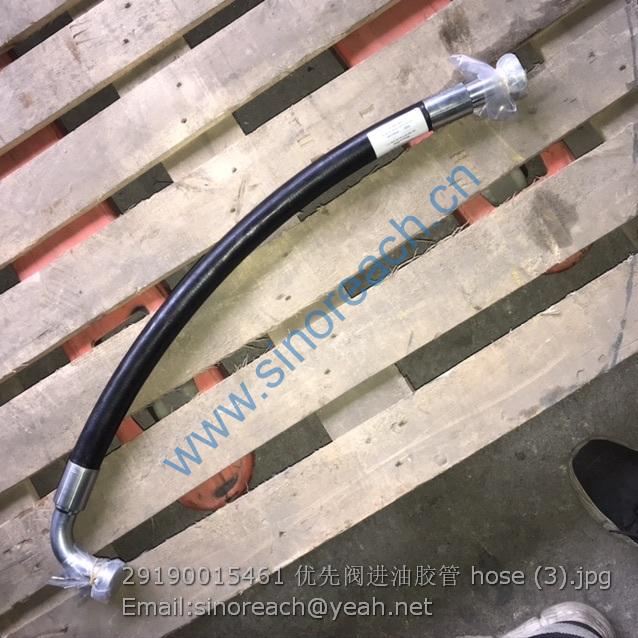

29190015461 hose SDLG

1 4120002263 动臂油缸HSGF-170*90*767-1427 Lifting cylinder N 2
2 29130012321 左动臂缸小腔钢管 Pipe Y 1
3 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 12
4 4011000473 螺栓GB16674-M10*55EpZn-8.8 Bolt Y 8
5 4011000309 螺栓GB16674-M10*50EpZn-8.8 Bolt Y 8
6 29130010861 动臂联大腔三通钢管 Pipe Y 1
7 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 6
8 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 56
9 29130010891 阀至左动臂缸大腔钢管 Pipe Y 1
10 29130010741 左支架 Bracket Y 1
11 4011000479 螺栓GB16674-M12*30EpZn-8.8 Bolt Y 4
12 29130020951 阀至左动臂缸小腔钢管 Pipe Y 1
13 29130011001 钢管支架 Bracket Y 1
14 4011000474 螺栓GB16674-M10*25EpZn-8.8 Bolt Y 3
15 29130010981 动臂联小腔三通钢管 Pipe Y 1
16 4041001141 U形螺栓LGB159-03646 U-bolt Y 1
17 4041001142 底板LGB160-3646 Bracket Y 1
18 4013000007 螺母GB6170-M10EpZn-8 Nut Y 14
19 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 14
20 4041001017 U形螺栓LGB159-13040 U-bolt Y 6
21 4041001018 底板LGB160-3040 Bracket Y 6
22 29130010571 动臂缸胶管 Hose assembly Y 4
23 4041000043 分体法兰LGB117-310490 Flange half Y 8
24 29130000111 管夹 Clamp Y 2
25 4011000458 螺栓GB16674-M8*20EpZn-8.8 Bolt Y 6
26 29130012361 左动臂缸大腔钢管 Pipe Y 1
27 4011000488 螺栓GB16674-M10*16EpZn-8.8 Bolt Y 4
28 29130010371 管夹 Clamp Y 4
29 4041000869 缓冲套LGB123-0740 Rubber sleeve Y 4
30 4013000033 螺母GB6170-M8EpZn-8 Nut Y 2

31 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 2
32 29130012381 右动臂缸大腔钢管 Pipe Y 1
33 29130010941 阀至右动臂缸小腔钢管 Pipe Y 1
34 29130010921 阀至右动臂缸大腔钢管 Pipe Y 1
35 29130012341 右动臂缸小腔钢管 Pipe Y 1
36 29130010701 右支架 Bracket Y 1

1 4120002263001 缸筒总成24A131290 Cylinder tube Y 1
2 4120002263002 活塞杆总成24A110800 Piston rod Y 1
3 4120002263003 缸盖24A170740 Cover Y 1
4 4120002263401 密封件包 Sealing ring kit Y 1
5 4120002263401 密封件包 Sealing ring kit Y 1
6 4120002263401 密封件包 Sealing ring kit Y 1
7 4120002263401 密封件包 Sealing ring kit Y 1
8 4120002263401 密封件包 Sealing ring kit Y 1
9 4120005685006 钢丝挡圈-孔用24C001150 D110.3*2t Retaining ring Y 1
10 4120002263401 密封件包 Sealing ring kit Y 1
11 4120002263401 密封件包 Sealing ring kit Y 1
12 4120002263401 密封件包 Sealing ring kit Y 1
13 4120002263004 活塞24A180280 Piston Y 1
14 4120002263401 密封件包 Sealing ring kit Y 1
15 4120002263401 密封件包 Sealing ring kit Y 2
16 4120002263401 密封件包 Sealing ring kit Y 1
17 4120004489008 钢球24U005001 D5 Ball N 1
18 4120004489009 内六角圆柱头螺钉24T508251 M8x25L Hex. socket screw Y 1
19 4120002263401 密封件包 Sealing ring kit Y 2
20 4120004488007 弹性垫圈24T401602 D16 Spring washer Y 12
21 4120005801012 螺钉-内六角圆柱头24T516555 M16*55L Screw Y 12
22 4120002263005 轴套24C051010 Bushing Y 1
23 4120002263401 密封件包 Sealing ring kit Y 2
24 4120005685012 固定座24C003020 M16 Anchorage Y 1

1 4015000197 垫圈GB96.1-10EpZn-300HV Washer Y 16
2 4011000082 螺栓GB5783-M10*25EpZn-8.8 Bolt Y 2
3 29140018641 放平护板 Plate Y 1
4 4120002264 转斗油缸HSGF-190*100*545-1085 Tilt cylinder N 1
5 4011000081 螺栓GB5783-M10*20EpZn-8.8 Bolt Y 2
6 4041001913 软管LGB106-012126 Hose Y 1
7 4041000056 分体法兰LGB117-312550 Flange half Y 4
8 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 24
9 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 7
10 4041000177 软管LGB106-012143 Hose assembly Y 1
11 4041000774 螺塞LGB135-01422 Plug Y 1
12 4041000767 O形圈LGB168-11124 O-ring Y 1
13 4011000309 螺栓GB16674-M10*50EpZn-8.8 Bolt Y 2
14 4011000473 螺栓GB16674-M10*55EpZn-8.8 Bolt Y 2
15 29140000051 转斗缸大腔钢管 Pipe Y 1
16 29140000121 压板 Plate Y 2
17 29140000131 橡胶板 Rubber plate Y 2
18 29140009291 橡胶板 Rubber plate Y 2
19 4011000797 螺栓GB5782-M10*110EpZn-8.8 Bolt Y 4
20 29140010821 钢管 Pipe Y 4
21 29140018631 支架 Bracket Y 2
22 4011000089 螺栓GB5783-M12*30EpZn-8.8 Bolt Y 4
23 4015000186 垫圈GB96.1-12EpZn-300HV Washer Y 4
24 29140015431 管夹 Clamp Y 2
25 4011000184 螺栓GB5783-M10*40EpZn-8.8 Bolt Y 8
26 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 8
27 4013000007 螺母GB6170-M10EpZn-8 Nut Y 8
28 29140018591 阀至转斗缸小腔钢管 Pipe Y 1
29 4041000027 分体法兰LGB117-312551 Flange half Y 2
30 29140018611 阀至转斗缸大腔钢管 Pipe Y 1
