Description

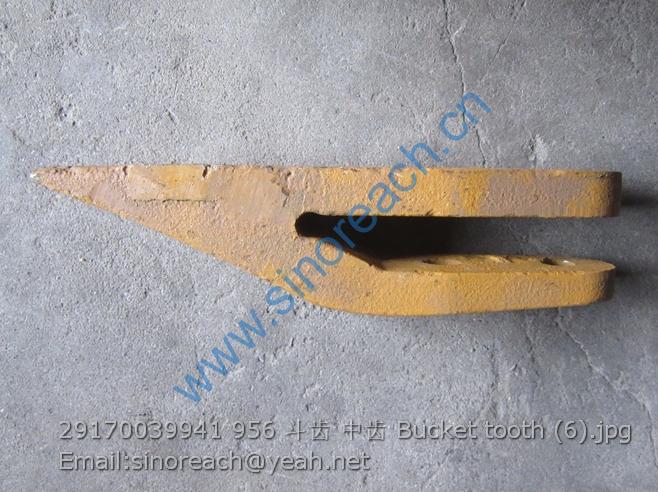

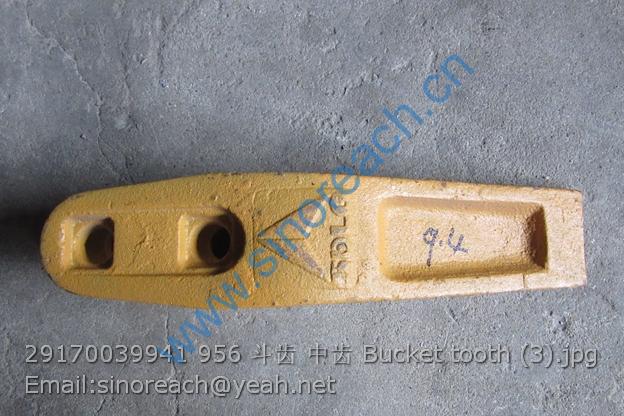

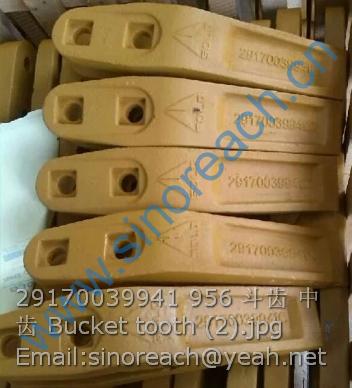

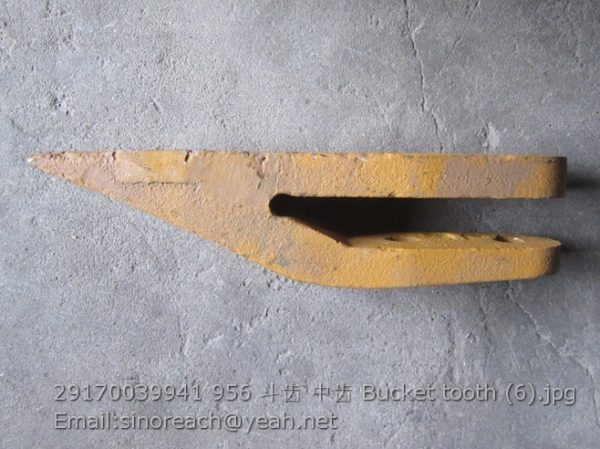

29170039941 956 Bucket tooth sdlg

1 29170037062 铲斗总成 Bucket Y 1
2 29170037072 铲斗 Bucket body Y 1
3 29170039941 斗齿 Bucket tooth Y 6
4 29170039961 右边齿 Bucket tooth Y 1
5 29170020531 斗齿调整垫 Shim Y 8
6 29170019711 螺栓 Bolt Y 16
7 29170019701 螺栓 Bolt Y 2
8 4013000020 螺母GB6170-M20EpZn-8 Nut Y 18
9 4015000176 垫圈GB97.1-20EpZn-300HV Washer Y 2
10 29170105791 铲斗铭牌 Name plate N 1
11 4019000012 铆钉GB827-3*5-BL2 Rivet Y 4
12 29170039951 左边齿 Bucket tooth Y 1

1 4017000006 喉箍JB8870-d100 Clamp Y 4
2 29110008681 工作泵吸油胶管 Hose Y 1
3 29110001061 工作泵吸油钢管 Pipe Y 1
4 4011000477 螺栓GB16674-M12*35EpZn-8.8 Bolt Y 4
5 4030000133 O形圈GB3452.1-56.0*3.55G O-ring Y 1
6 4041000009 分体法兰LGB117-320760 Flange half Y 1
7 4013000011 螺母GB6170-M12EpZn-8 Nut Y 4
8 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 4
9 4012000003 螺柱GB898-M12*35EpZn-8.8 Stud Y 4
10 4120001715 齿轮泵JHP3160 Gear pump Y 1
11 29110000042 泵用密封垫 Gasket N 1
12 29110009071 工作泵出油软管 Hose assembly Y 1
13 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 8
14 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 2
15 4041000056 分体法兰LGB117-312550 Flange half Y 2
16 29110008631 阀块 Valve block Y 1
17 4011000560 螺栓GB16674-M12*25EpZn-8.8 Bolt Y 4
18 4041000774 螺塞LGB135-01422 Plug Y 2
19 4041000767 O形圈LGB168-11124 O-ring Y 2
20 4041000192 螺塞LGB135-03341 Plug Y 1
21 4041000765 O形圈LGB168-12931 O-ring Y 1

1 4120001715001 挡圈41060100400 Retaining ring Y 1
2 4120001715002 旋转轴唇形密封圈 43020200200 Sealing ring Y 2
3 4120001715003 挡圈41060100300 Retaining ring Y 1
4 4120001715004 前盖21050200110 Cover Y 1
5 4120005081002 环形密封圈44020100700 Sealing ring Y 2
6 4120001715006 滚针轴承 42010100200 Needle bearing Y 4
7 4120001715007 定位套21050900110 Spacer sleeve Y 4
8 4120001715008 耳形挡片21050800110 Retaining ring Y 2
9 4120001715009 耳形密封垫21050700110 Sealing washer Y 2
10 4120001715010 侧板21050600110 Side board Y 2
11 4120001715011 主动齿轮轴21050117010 Drive shaft Y 1
12 4120001715012 从动齿轮轴21050417010 Shaft Y 1
13 4120001715013 泵体21050317010 Pump body Y 1
14 4120001715014 后盖21050500110 Cover Y 1
15 4120001715015 螺钉44010103080 Screw Y 4
16 4120001715016 弹簧垫圈41050200700 Spring washer Y 4
17 4120001715017 螺钉41010101780 Screw Y 4
18 4120001715018 弹簧垫圈41050200500 Spring washer Y 4
19 4120001715019 密封件包 Sealing ring kit Y 1

1 4120001715201 前盖574C-B0204 Cover N 1
2 4120001715202 后盖592C-B0027 Cover N 1
3 4120001715203 泵体577C-B007225005 Pump body N 1
4 4120001715204 主齿024C-B0087-25DR Drive shaft gear N 1
5 4120001715205 从齿996C-B0012-25ID Shaft N 1
6 4120001715206 侧板AZ-0947-TV Side board N 2
7 4120005082210 孔用弹性挡圈565C-00016 Retaining ring N 1
8 4120005082211 外置轴承W58-48 Beaing N 1
9 4120001715207 油封骨架QZ-0961 Sealing ring N 1
10 4120005082212 油封W62-26-10 Sealing ring N 1
11 4120001715208 Ｏ型圈K-2995-164 O-ring N 2
12 4120001715209 二次密封环VA-0558-1XS Sealing ring N 2
13 4120001715210 滚针轴承Q-0921 Needle bearing N 4
14 4120005082214 堵油螺钉S-0280 Screw N 1
15 4120001715211 圆柱销280C-00003 Pin N 4
16 4120001715212 方型密封环TA-2995-252 Sealing ring N 2
17 4120001715213 螺栓W1-89 Screw N 8
18 4120005082221 垫圈W033-2 Washer N 8
19 4120001715214 密封件包 Sealing ring kit N 1

1 4015000015 挡圈GB893.1-80-65Mn Retaining ring Y 1
2 4120001715401 轴承3910381078 Bearing N 1
3 4120001715402 O形圈3912881457 O-ring N 2
4 4120001715403 密封套3912584051 Sleeve N 1
5 4120001715404 油封3912883052 Sealing ring N 2
6 4120001715405 前盖3165037202c Cover N 1
7 4120001715406 密封环3912585011 Sealing ring N 2
8 4120001715407 螺堵3912286004 Plug N 1
9 4120001715408 轴承3910381060A Bearing N 4
10 4120001715409 密封件3912882052 Sealing ring N 12
11 4120001715410 侧板3912185026A Side board N 2
12 4120001715412 主动齿轮CN102000086 Drive shaft N 1
13 4120001715413 从动齿轮3162725000 Shaft N 2
14 4120001715411 密封圈3912884024 Sealing ring N 1
15 4120001715414 中间体P76-25-104-02 Centering block N 1
16 4120001715415 销3912082033 Pin N 4
17 4120001715416 后盖3163120100 Cover N 1
18 4120001715417 垫圈3913784028 Washer N 8
19 4120001715418 螺栓3911401363 Screw N 8
20 4120001715419 标牌3912181999A Decal N 1
21 4120003294019 铆钉3911432004 Rivet N 2
22 4120001715420 密封件包CN102000099 Sealing ring kit N 1
