Description

29070010171 spider FOR SDLG LOADER L918

31 4021000239 滚动轴承GB297-32310 Roller bearing Y 1
32 29090009201 主动螺旋伞齿轮（右） Crown wheel N 1
33 29070014241 锥齿轮垫片 Thrust washer Y 4
34 29070010161 锥齿轮 Differential pinion Y 4

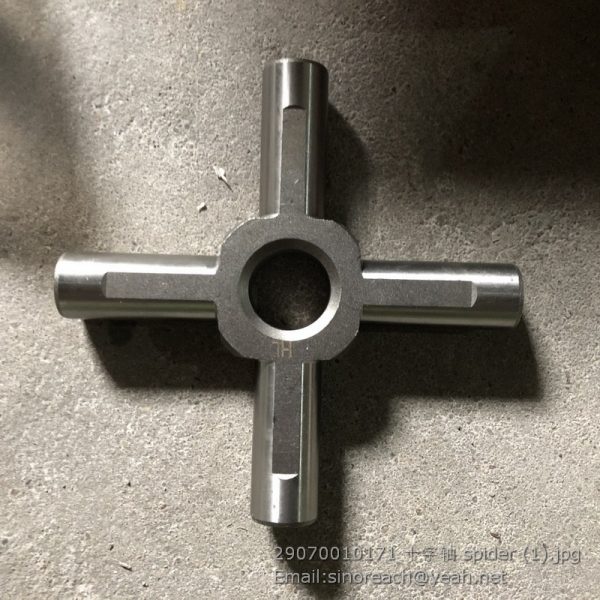

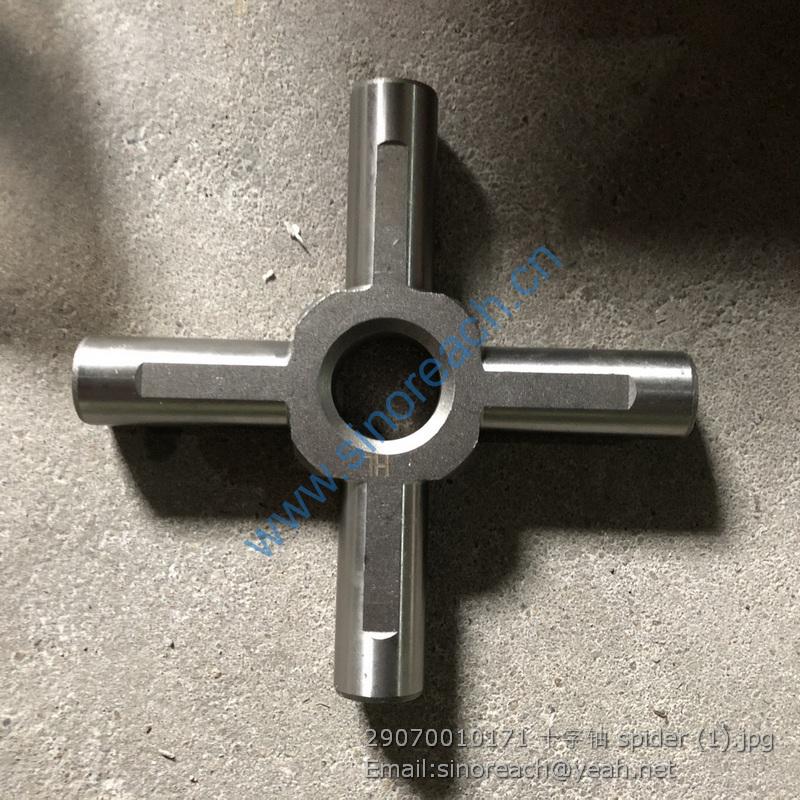

35 29070010171 十字轴 Spider Y 1
36 29090009211 从动螺旋伞齿轮（左） Crown wheel N 1
37 29070014271 半轴齿轮 Differential side gear Y 2
38 29070014261 半轴齿轮垫片 Shim Y 2
39 29070010211 固定销 Pin Y 4
40 29070014281 差速器左壳 Differential housing N 1
41 29070015981 垫圈 Washer Y 18
42 4011000967 螺栓GB5786-M12*1.25*25EpZn-8.8 Screw Y 10
43 29070014311 差速器右壳 Differential housing N 1
44 4011000699 螺栓GB5785-M12*1.25*50EpZn-10.9 Bolt Y 8
45 29070010251 调整垫片 Shim Y 3
46 29070019561 差速器总成 Differential spider Y 1
47 21909005161 A513差速器左右壳 Differential housing Y 1
48 21909005151 A513后主从动伞齿轮 Crown wheel Y 1
49 21909006481 锥齿半齿总成 Gear kit Y 1

1 29120018651 多路阀固定板 Anchor plate Y 1
2 4011000479 螺栓GB16674-M12*30EpZn-8.8 Bolt Y 4
3 4013000011 螺母GB6170-M12EpZn-8 Nut Y 4
4 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 4
5 4120008616 多路阀HC-D6/3-140bar Control valve Y 1
6 4011000302 螺栓GB16674-M8*75EpZn-8.8 Bolt Y 3
7 4041000772 螺塞LGB135-11019 Plug Y 1
8 29120013381 垫圈 Washer Y 3
9 29120012681 直通接头 Nipple Y 1
10 4030000090 O形圈GB3452.1-28.0*2.65G O-ring Y 1
11 29120010471 组合直角接头 Elbow nipple Y 1
12 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 1
13 29120032051 压板 Plate Y 1
14 29120032041 橡胶管夹 Clamp Y 2
15 4011001467 螺栓GB5782-M10*80flZnyc-8.8-480 Bolt Y 2
16 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 2
17 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 4
18 4041000599 软管LGB165-014140 Hose assembly Y 1
19 4041000600 软管LGB128-012125 Hose assembly Y 1
20 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 4
21 4041000137 分体法兰LGB117-306400 Flange half Y 1
22 4030000279 O形圈GB3452.1-25.0*3.55G O-ring Y 1
23 29120006591 回油胶管 Hose assembly Y 1
24 4041000796 直接头LGB120-02628 Nipple Y 1
25 4041000779 O形圈LGB168-12331 O-ring Y 1
26 4041000685 O形圈LGB168-12631 O-ring Y 1
27 29120006551 组合直角接头 Nipple Y 1
28 4041000510 软管LGB129-012045 Hose assembly Y 1
29 4041000774 螺塞LGB135-01422 Plug Y 2
30 4041000767 O形圈LGB168-11124 O-ring Y 2

31 4011001509 螺栓GB16674.1-M12*45flZnyc-8.8-480 Bolt Y 2
32 29120030191 过渡块 Block Y 1
33 4041000598 堵塞LGB142-01604 Plug Y 2
34 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 2
35 4041001535 螺塞LGB135-12436 Plug Y 2
36 29120018641 垫圈 Washer Y 2
37 29130026841 接头块 Connector Y 1
38 4030000504 O形圈GB3452.1-25.8*1.80G O-ring Y 1
39 29120018891 直接头 Nipple Y 1
40 4030000153 O形圈GB3452.1-37.5*2.65G O-ring Y 1
41 4041001533 直接头LGB120-11413 Nipple Y 2
42 4041001047 组合接头LGB143-01406 Nipple Y 1
43 4030000530 O形圈GB3452.1-6.00*1.80G O-ring Y 1
44 4041001223 软管LGB125-003060 Hose assembly Y 1
45 4041000680 堵塞LGB142-03016 Plug Y 1
46 4030000241 O形圈GB3452.1-20.0*1.80G O-ring Y 1

1 4041000575 软管LGB125-004070 Hose Y 1
2 4120001954 滤油器PLF-C30*10 Hydraulic fluid filter Y 1
3 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 2
4 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 2
5 29120015081 接头 Nipple Y 2
6 4030000276 O形圈GB3452.1-32.5*2.65G O-ring Y 2
7 4190000176 过渡接头EW10LOMDA3C Nipple Y 2
8 4041002063 软管LGB125-004037 Hose assembly Y 1
9 4120002933 先导阀总成HC-RCL-24 Control lever Y 1
10 4011000154 螺栓GB16674-M6*20EpZn-8.8 Bolt Y 3
11 4013000028 螺母GB6170-M6EpZn-8 Nut Y 3
12 4015000198 垫圈GB96.1-6EpZn-300HV Washer Y 3
13 4120004696 直通接头1CO-16-06 Nipple Y 2
14 4120005540 换向阀SV08-20MS-6T-N-24ER Control valve Y 1
15 4011001284 螺栓GB16674.1-M6*40flZnyc-8.8-480 Screw Y 2
16 29220017621 直接头1-1/16-12UN-M18 Nipple Y 1
17 4041002884 软管LGB128-005070 Hose assembly Y 1
18 29120015661 固定板 Anchor plate Y 1
19 4011001337 螺栓GB16674.1-M12*20flZnyc-8.8-480 Screw Y 6
20 4011001470 螺栓GB16674.1-M8*70flZnyc-8.8-480 Bolt Y 4
21 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 4
22 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 4
23 29120018741 橡胶管夹 Clamp Y 2
24 29120018751 橡胶管夹 Clamp Y 2
25 29120015381 板 Plate Y 2
26 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 2
27 29120007671 管夹 Clamp Y 3
28 4041000598 堵塞LGB142-01604 Plug Y 1
29 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 2
30 29120013381 垫圈 Washer Y 10
