29050018381 O-ring SDLG

Category: Tag:

Description

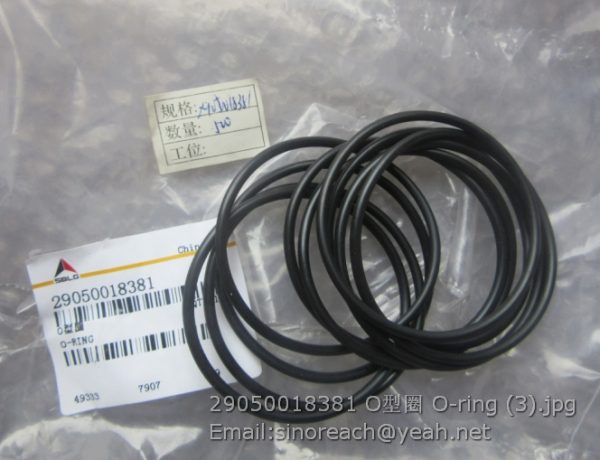

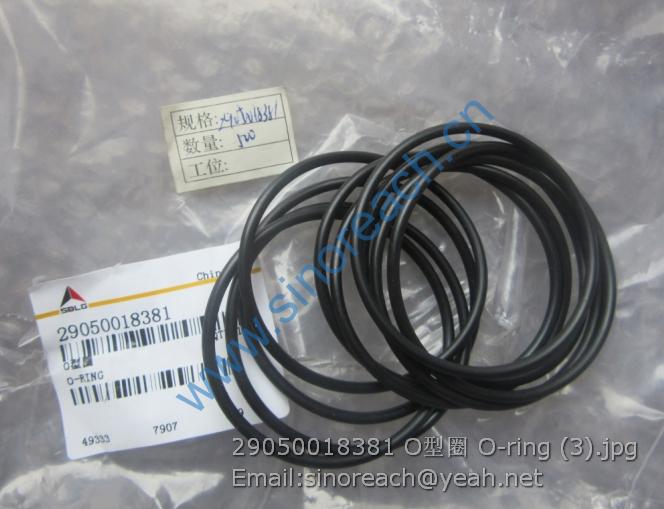

29050018381 O-ring SDLG

1 4110000376 后桥总成PR35.22B REAR AXLE ASS’Y PR35.22B
2 29050006541 螺栓 BOLT
3 29080006531 后传动轴 REAR MOTION SHAFT
4 29080001031 螺栓 BOLT
5 29080007561 止动垫圈 LOCKING LEFT
6 29050006531 主传动轴 MOTION SHAFT
7 4013000072 螺母GB889.2-M12*1.25EpZn-10 NUT GB889.2-M12*1.25EpZn-10
8 4011000568 螺栓GB5786-M12*1.25*40EpZn-10.9 BOLT GB5786-M12*1.25*40EpZn-10.9
9 4015000168 垫圈GB97.1-12EpZn-300HV WASHRE GB97.1-12EpZn-300HV
10 29080006521 前传动轴 FRONT MOTION SHAFT
11 4110000375 前桥总成PR35.22A FRONT AXLE ASS’Y PR35.22A
12 4110000384 轮辋LY13-20.918 WHEEL FELLONE LY13-20.918
13 2050900108 轮胎 TIRE
14 4011000700 螺栓GB5785-M20*1.5*180EpZn-8.8 BOLT GB5785-M20*1.5*180EpZn-8.8
15 4013000160 螺母GB889.2-M20*1.5EpZn-8 NUT GB889.2-M20*1.5EpZn-8
1 4110000384 轮辋LY13-20.918 WHEEL FELLONE LY13-20.918
2 2050900108 轮胎 TIRE GB2980-16/70-20
1 4120000986 操纵机构LG12-918CZJG CONTROL MECHANISM LG12-918CZJG
2 4011000447 螺栓GB16674-M10*20EpZn-8.8 BOLT GB16674-M10*20EpZn-8.8
3 4120000365 多路阀ZL20DL1-02 MULTIPLE UNIT VALVE
4 4011000479 螺栓GB16674-M12*30EpZn-8.8 BOLT GB16674-M12*30EpZn-8.8
5 4015000168 垫圈GB97.1-12EpZn-300HV WASHER GB97.1-12EpZn-300HV
6 4013000011 螺母GB6170-M12EpZn-8 NUT GB6170-M12EpZn-8
7 4011000467 螺栓GB16674-M12*45EpZn-8.8 BOLT GB16674-M12*45EpZn-8.8
8 29120006521 多路阀固定板 MOUNTED PLATE OF MULTIPLE UNIT VALVE
9 4041000676 直接头LGB120-03630 CONNECTOR LGB120-03630
10 4041000685 O形圈LGB168-12631 O-RING LGB168-12631
11 29120006541 组合直角接头 UNIT ANGLE COUPLING
12 4030000504 O形圈GB3452.1-25.8*1.80G O-RING GB3452.1-25.8*1.80G
13 4041000675 软管LGB165-014130 PIPE LGB165-014130
14 29120006551 组合直角接头 UNIT ANGLE COUPLING
15 4030000501 O形圈GB3452.1-15.0*1.80G O-RING GB3452.1-15.0*1.80G
16 4041000511 软管LGB128-012112 PIPE LGB128012112
17 4041000582 直接头LGB120-02630 CONNECTOR LGB120-02630
18 29120006571 阀块 VALVE BLOCK
19 4041000510 软管LGB129-012045 PIPE LGB129-012045
20 4041000796 直接头LGB120-02628 CONNECTOR LGB120-02628
21 4041000779 O形圈LGB168-12331 O-RING LGB168-12331
22 4011000481 螺栓GB16674-M8*30EpZn-8.8 BOLT GB16674- M8*30EpZn-8.8
23 4030000279 O形圈GB3452.1-25.0*3.55G O-RING GB3452.1-25*3.55G
24 29190008061 压盖 GLAND
25 29120006591 回油胶管 RETURN PIPE
26 29120006601 压板 PRESS PLATE
27 29120011171 橡胶板 RUBBER PLATE
28 4011000314 螺栓GB16674-M10*80EpZn-8.8 BOLT GB16674-M10*80EpZn-8.8
29 4013000007 螺母GB6170-M10EpZn-8 NUT GB6170-M10EpZn-8
30 4015000162 垫圈GB97.1-10EpZn-300HV WASHER GB97.1-10EpZn-300HV
31 29120008051 操纵软轴 CONTROL FLEXIBLE SHAFT
32 29120006621 铰接头 PIN JOINT
33 4016000195 销轴GB882-8*26EpZn-35 PIN ROLL GB882-B8*26EpZn-35
34 4019000184 开口销GB91-3.2×18EPZN-Q235 SPLINT PIN
35 4015000025 垫圈GB93-10-65Mn WASHER GB93-10-65Mn
36 29140000021 固定板 MOUNTED PLATE
37 29140006521 转斗指示杆 INDICATING ROD OF BUCKET
38 29140000041 转斗指示板 INDICATING PLATE OF BUCKET
39 4120000979 转斗油缸HSGL-100*55*404-779 TILT CYLINDER HSGL-100*55*404-779
40 4011000461 螺栓GB16674-M8*16EpZn-8.8 BOLT GB16674-M8*16EpZn-8.8
41 29140006531 管夹 PIPE CLIP
42 29140006541 转斗缸大腔钢管 BIG CHAMBER TUBE OF TILT CYLINDER
43 29140006551 压板 PRESS PLATE
44 29140006561 橡胶板 RUBBER PLATE
45 4041000586 软管LGB128-010145 PIPE LGB128-010145
46 4041000587 软管LGB128-010140 PIPE LGB128-010140
47 4041000187 直接头LGB120-02622 CONNECTOR LGB120-02622
48 4041000771 O形圈LGB168-11924 O-RING LGB168-11924
49 4120001153 动臂油缸HSGL-90*50*640-965 LIFT CYLINDER HSGL-90*50*640-965
50 29130006521 左动臂缸小腔钢管 SMALL CHAMBER TUBE OF LEFT LIFT CYLINDER
51 29130006531 左动臂缸大腔钢管 BIG CHAMBER TUBE OF LEFT LIFT CYLINDER
52 4030000242 O形圈GB3452.1-12.5*1.80G O-RING GB3452.1-12.5*1.80G
53 29130006541 右动臂腔小腔钢管 SMALL CHAMBER TUBE OF RIGHT LIFT CYLINDER
54 29130006551 右动臂缸大腔钢管 BIG CHAMBER TUBE OF RIGHT LIFT CYLINDER
55 29130006561 动臂联三通钢管 THREE-WAY OILTUBE OF LIFTING CYLINDER
56 4041000702 软管LGB128-006075 PIPE LGB128-006075
57 4041000114 软管LGB128-006070 PIPE LGB128-006070
58 4041000699 软管LGB127-006075 PIPE LGB127-006075
59 29130006571 动臂联大腔二通钢管 OIL TUBE OF BIG CHAMBER LIFT CYLINDER
60 29130006581 动臂联小腔二通钢管 OIL TUBE OF SMALL CHAMBER LIFT CYLINDER
61 4011000555 U形螺栓JB/ZQ4321-18Zn-Q235A.F U-BOLT JB/ZQ4321-18Zn-Q235A.F
62 4013000028 螺母GB6170-M6EpZn-8 NUT 6170-M6EpZn-8
