Description

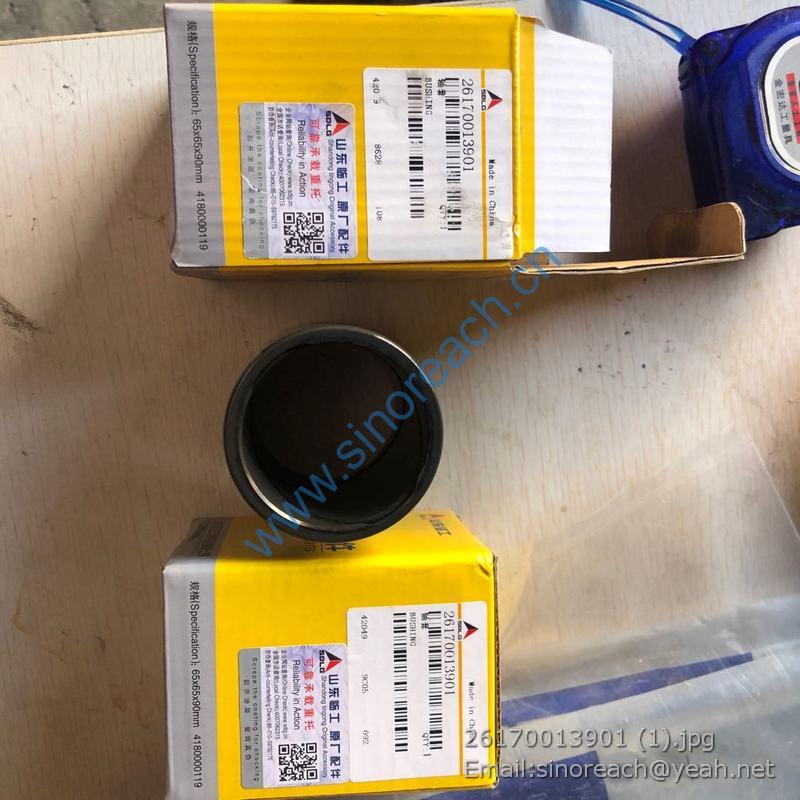

26170013901 bushing

4030000012 O-RING GB1235-22*2.4
4030000731 O-RING GB1235-30*2.4
4120000064025 SPACER SLEEVE ZL30.05.17-11
4120000064026 OIL SEAL 18*30*10 HG4-692-67
4015000283 CHECK RING GB893.1-30-65Mn
4120000064017 BOLT ZL30.05.17-19
4120000064035 VALVE SEAT ZL30.05.17-12A
4120000064036 VALVE ROD ZL30.05.17-13B
4030000268 O-RING GB3452.1-17.0*1.80G
4030000011 O-RING GB1235-20*2.4
4015000308 RETAINER GB893.1-20-65Mn
4120000064037 VALVE BODY ZL50.6.18-16a/1
4120000064018 NUT ZL25.1-09A
4120000064014 ROUND PLUG ZL30.05.17-18
4030000634 O-RING GB1235-13*1.9
4120000064001 BOLT Φ55*31 ZL30.05.17-20
4015000307 WASHER JB982-42
4120000064011 SLIDE BLOCK ZL30.05.17-22
4120000064033 CIRCULAR FLAT-PLATE ZL30.05.17-26
4090000154 STEEL BALL GB308-4.762-GCr15
4120000064010 SPRING ZL30.05.17-23
4120000064009 SPRING ZL30.05.17-24B
4120000064008 SPRING SEAT ZL30.05.17-25
E11-4110000003 TIRE GB2980-23.5-25（520101）
4110000003001 30 TIRE SKIN GB2980-17.5-25-12
7200000132 TIRE INNER TUBE
7200000133 TIRE SHOE
E2-2050900006 FRONT AXLE MAIN DRIVE ASSEMBLY
4013000066 NUT GB889.2-M33*1.5-8
3050900007 WASHER
2050900011 INPUT FLANGE
4030000048 FRAME OIL SEAL HG4-692-SG70*95*12
3050900009 SEALED COVER
4011000067 BOLT GB5782-M14*55EpZn-8.8
4015000027 WASHER GB93-14-65Mn
3050900172 SHIM
4021000028 BEARING GB297-31310
3050900013 BEARING HOLDER
3050900008 O-RING
4011000186 BOLT GB5782-M12*55EpZn-8.8
4015000026 WASHER GB93-12-65Mn
3050900011 ADJUST SHIM
3050900030 SHIM
3050900012 BOSS
4021000029 ROLLING BEARING GB297-31311
kongbai
4016000124 PIN GB119.2-10u8*30
4021000035 ROLLING BEARING GB297-32215
3050900019 ADJUST BOLT
3050900016 CARRIER
29070000311 LOCKING LEAF
4013000052 NUT GB6173-M27*2-05
29070000661 SLEEVE
29070000301 BOLT
3050900023 BEARING BLOCK
3050900024 STAY
4015000025 WASHER GB93-10-65Mn
4011000597 BOLT GB5786-M10*1*20EpZn-8.8
29070001301 WASHER
29070000461 PIN
29090007971 BOLT
3050900055 ACTIVE SPIRAL BEVEL GEAR
4021000026 ROLLING BEARING GB283-NUP2306
4015000019 CHECK RING GB894.1-30-65Mn
3050900017 ANGLE GEAR SHIM
3050900018 ANGLE GEAR
29090007961 WASHER
4013000197 NUT GB6176-M14*1.5-10
3050900020 LEFT SHELL OF DIFFERENTIAL MECHANISM
3050900022 SHIM OF HALF AXLE GEAR
3050900021 HALF AXLE GEAR
3050900026 CROSS AXLE
29070010851 BOLT
29070009511 WASHER
4013000198 NUT GB6176-M16*1.5-10
29090007951 BOLT
3050900027 RIGHT SHELL OF DIFFERENTIAL MECHANISM
3050900056 BIG SPIRAL BEVEL GEAR
3050900032 CHECK RING
7300000287 CARRIER ASSEMBLY
3050900201 FRONT SPIRAL BEVEL GEAR
3050900199 LEFT RINGHT SHELL OF DIFFERENTIAL MECHANISM
E3-2050900004 FINAL DRIVE ASSEMBLY
29070013171 SHIM
3050900042 RING SNAP
3050900041 PLANET GEAR
4090000003 ROLLER PIN GB309-4*38-GCR15
3050900003 RIM NUT
3050900044 RIM BOLT
3050900050 DIFFERENTIAL AXLE
4013000136 NUT GB6171-M18*1.5EpZn-8
4015000029 WASHER GB93-18-65Mn
3050900046 HUB WHEAL
29070007661 PLANET WHEEL CARRIER
4090000007 STEEL BALL GB308-8-GCr15
3050900043 PLANET PINION SHAFT
4120000080 PLUG Q/ZB286-ZG3/4″-Q235A
29070007681 O-SEALING RING
4090000006 STEEL BALL GB308-17.462-GCr15
