Description

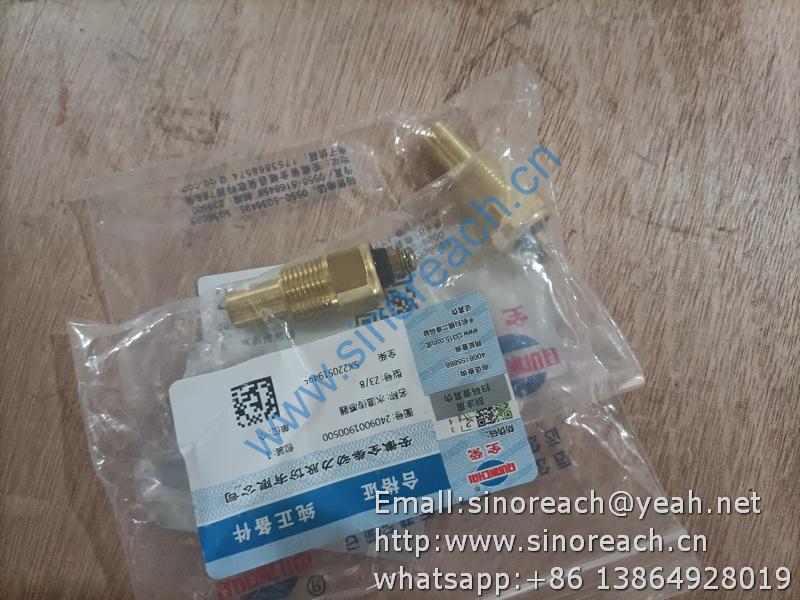

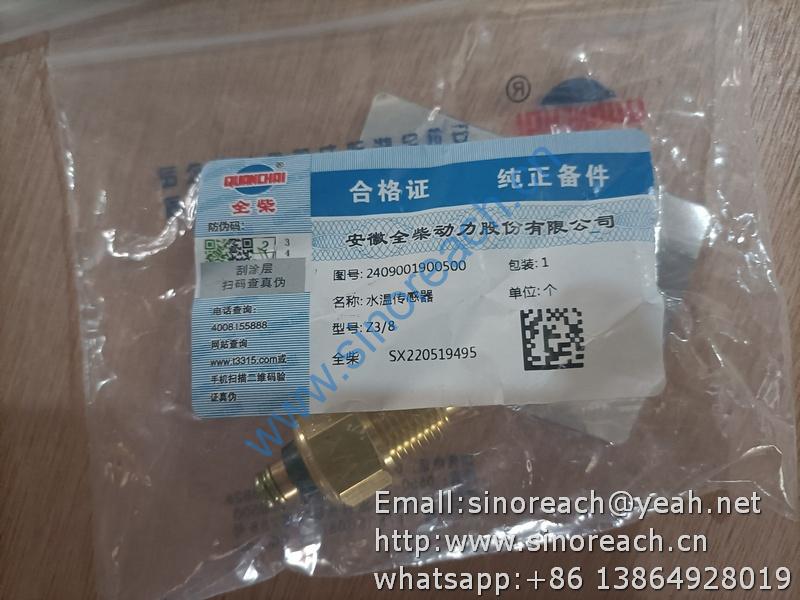

2409001900500 Water temperature sensor for QUANCHAI QC490 spare parts

240100081765 Oil Inlet Pipe Weldment; Refined Filtration C1302-B.62.013
240100008748 Oil Pump CBN-E320
210503000035 Plug screw JB/T1000 M10*1-Zn.D
240100081784 Bolt C1302-B.62.101
240100081788 Oil Suck Filter Bracket C1302-B.62.104
Material code Part name Drawing Number
240100081775 Left Oil Outlet Weldment C1302-B.62.025
210101270116 Bolt GB/T5782 M12*100-8.8-Zn.D
240100081771 Forced Lubrication Pipe Assembly C1302-B.62.020
240100081796 Bottom Plate Gasket C1302-B.62.110
240100081783 Refined Filtration Bracket C1302-B.62.034
240100081767 Oil Outlet Pipe Weldment; Oil Pump C1302-B.62.015
240100081780 High Pressure Oil Filter C1302-B.62.030（DFM50S2T-10BG）
240100081793 Oil Outlet Pipe Weldment; Oil Tank C1302-B.62.107
240100081776 Oil Out let Pipe Weldment; Refined Filtration C1302-B.62.026
240100081801 Clip;Oil Pipe C1302-B.62.143
240100081797 Long Oil Returning Pipe C1302-B.62.111
240100081791 Oil Return Joint; Gearbox C1302-B.62.106
240100081786 Extended Bolt C1302-B.62.102
210101270346 Bolt GB/T5782 M8*50-8.8-Zn.D
240100081763 Spraying Streight Pipe Assembly C1302-B.62.011
240100012922 Check Valve S15A2.0/2
240100081794 Paper Gasket C1302-B.62.108
240100081798 Short Oil Returing Pipe C1302-B.62.112
Material code Part name Drawing Number
240100081773 Steering Valve C1302-B.62.022（0A57005）
240100018562 Compression Release Valve 0A57002
240100081764 Spraying Siphonium Assembly C1302-B.62.012
240100081778 Lubrication Siphonium Assembly C1302-B.62.028
240100081803 Oil Returning Pipe; Oil tank C1302-B.62A.011
240500000142 Final Transmission Device(Left) C1302.39.001
240100018984 Left Half Of External Shell 1002.39.201-1
240100022138 Counter Weight C1202.74.001
240100018761 Front balancing weight 1002.30.155
240100141719 Front Bolt Assembly C1202.50.012
240100022139 Front Counter Weight Bracket Assembly C1202.74.011
240100018760 Washer 1002.30.154
240100086388 Bolt Assembly C1202.74.013
240100022141 Lower Counter Weight C1202.74.107
240500000401 PTO Shaft Assy C1302-B.41.001
240100085684 Spacer C1302-B.41.107
240100086382 Teeth Seat; Engage Sleeve C1302-B.41.137
240100086356 Rocker Arm Assy C1302-B.41.016
240100063809 Constantly Meshed Driven Gear C1302-B.41.112
210201001105 Bearing 22208CA/W33
240100086361 Bearing Cover C1302-B.41.105
240100086357 Pulling Plate Weldment C1302-B.41.017
240100085688 Press Plate C1302-B.41.127
240100086381 Airproof Gasket C1302-B.41.136
240100086353 Shifting Fork C1302-B.41.121
210111070017 Retaining ring GB/T893.1 40
240100086366 Engagement Sleeve C1302-B.41.113
240100086372 Airproof Gasket C1302-B.41.126
210201000325 Bearing 6309E(309E)
240100085689 II Stage Sliding Rod C1302-B.41.130
240100085685 Bearing Cover C1302-B.41.108
240100086358 Oil Dipstick Assy C1302-B.41.018
240100015892 Push Pull Flexible Shaft C1302-B.41.014
240100085691 Protective Sleeve; PTO Shaft C1302-B.41.135
240100082066 Patch YTQ031.1 20
240500000529 Magnetism oil drain screw plug assy 885118991-1.21 030A
240100086354 PTO Hose Assy C1302-B.41.013
240100086368 Upper Cover Gasket C1302-B.41.119
240100033881 Aluminium Washer 22.3*28*1.5 14607-10263460
240100019827 Shifting Fork Spring 1302R.41.113
210201000880 Bearing NJ308E(42308E)
240100063806 I Stage Driving Gear C1302-B.41.103
240100086371 Airproof Gasket C1302-B.41.125
240100081668 Shifting Fork Shaft C1302-B.41.120
240100085694 Spacer C1302-B.41.140
240100085690 II Stage Lever C1302-B.41.131
240100063811 Driven Gear C1302-B.41.117
240100086374 Protection Hood C1302-B.41.129
210201000563 Bearing NJ309E(42309E)
240100085692 Spacer C1302-B.41.138
240100086369 Upper Cover C1302-B.41.123
240100086355 Flexible Shaft Support Weldment C1302-B.41.015
240100019090 Spacer 1002.41.119
240100086364 Oil Seal Assy C1302-B.41.109
240100086370 Airproof Gasket C1302-B.41.124
240100086360 Connecting Sleeve C1302-B.41.104
240100063805 PTO Shaft C1302-B.41.102
240100085683 PTO Shaft Case C1302-B.41.101
240100085693 Spacer C1302-B.41.139
240500000415 PTO Shaft Assembly 540r/min C1302-B.41.011
240100085687 Bearing Seat C1302-B.41.118
240100063810 Constantly Meshed Driving Gear C1302-B.41.116
240400000796 Front frame assy SG354.30.001YdX
240100049450 Front Half Weldment;Front Frame SG284.30.018E-1
240100049090 Pin Shaft Assembly SG254.30.017
210103230025 Nut GB/T6170 M14-8-Zn.D
240100049098 Double-screw bolt SG254.30.126
240100049454 Support Weldment of Battery SG284.30.032E
240100086319 Rear Half Weldment;Front Frame SG354.30Y.019
210103230038 Nut GB/T6170 M24-8-Zn.D
240100079393 Panel frame SG250.30.107
240100049099 Drawing Seat SG254.30.127
240100049100 Fron Ballast SG254.30.128
240100057729 Fixing Clip;Overflow Drain ZN390T.13.201
210110050033 Washer GB/T97.1 14-140HV-Zn.D
210101270270 Bolt GB/T5782 M20*60-8.8-Zn.D
240400000768 Full Hydraulic steering gear assy SG354.40.001YX
240100049283 Oil delivery pipe SG254.40.201E
240100049285 Spacer SG254.40.204E
210510000021 Hinge bolt JB/T999 M18*1.5*40-Zn.D
240100049276 Return Oil Pipe Weldment SG254.40.053E
210201000961 Bearing 6004-2RS
240100049269 Pipe Weldment;Left Steering Device SG254.40.015
240100049282 Steering Device Seat SG254.40.111
240100049281 Oil Pipe Connecting Plate SG254.40.104-2
240100099768 Steering wheel assy E300.40.014A
240100049279 Bolt SG254.40.103
240100049277 Oil Pipe Clip SG254.40.101
240100049274 Steering Oil Tank SG254.40.024E
240100099743 Pipe Weldment;Right Steering Device SG254.40.014B
240100107764 Steering pole sleeve assy SG254.40.022A
240100049284 Spacer SG254.40.202E
240100049265 Return Oil Pipe Weldment SG254.40.012E
240100030606 Clip 18.54.103
240100001848 Steering Gear(With Valve Block) BZZ1-E80C/FKA2-103016
240100047717 Paper gasket 15.22.109
240100099742 Oil Pipes Assy;Steering System SG254.40.011B
240100049268 Pipe Weldment;Right Steering Device SG254.40.014
240100049405 Bolt SG254.61.102
240100049273 Oil Inlet Pipe Weldment of constant flow pump SG254.40.023E
210510000009 Hinge bolt JB/T999 M20*1.5*40-Zn.D
240100051684 Constant flow pump HLCB-D06/06FIBR
240400000710 Muffler Installation Assy YD385.08.011X
240100120874 Iron shroud 2 YD385T.00.202A
240100120873 Iron shroud 1 YD385T.00.201A
240100049725 Muffler Assy. YD385.08.010A
240400000762 Transfer Case Assy SG354.42.001-1X
240100049298 Larger Gear of Front Driving SG254.42.109
210108100108 Pin GB/T879.1 6*50
240100001613 Carbon Steel Hose Clamp JB/T8870 d70/51-70
210802000242 Oil seal GB/T9877.1 B30*52*8
240100049294 Rear Cover SG254.42.106
240100079384 Output Shaft SG254.42.105-1
240100049287 Sleeve Weldment Assy SG254.42.011
240100049291 Retaining ringⅠ SG254.42.103
240100049289 Transfer Case housing SG254.42.101
240100049299 Spacer bush II SG254.42.110
210204000035 Steel ball GB/T308 Φ9.5G200b
240100049290 Idler Wheel shaft SG254.42.102
210111110030 Retaining ring GB/T895.2 20
240100049297 Spacer bush I SG254.42.108
240100049292 Mid Gear of Front Driving SG254.42.104
240100049295 Paper seal I SG254.42.107
210201000312 Bearing 6305E(305E)
240400000744 Clucth Assy SG284.21B.001X
240100049080 oil- mixing driving gear SG254.21B.102
240400000771 Clutch Case Assy SG254.21B.011X
240100087762 Connection Case SG254.21B.101
240100049056 Spacer bush of clutch shell SG254.21.140
240100049029 Paper washer of clutch shell SG254.21.108
240400000137 Releasing Bearing Assy SG284.21.012
240100049447 Bearing Seat;Clutch Release Lever SG284.21.103
240100049014 Safety Start Switch Assy SG254.21.015
240100049026 Control rod of clutch SG254.21.105A
210108010024 Cotter pin GB/T91 3.2*20
240100048960 Smaller Gear of Transfer case SG184.42.109
240100049446 Auxiliary Main Clutch Shaft SG284.21.101
240100030824 Return Spring; Pedal E300.43.130
240100049444 Pressure Plate assy of clutch SG284.21.011
240100122110 Clutch Pedal assy of clutch SG254.21.017-3A
210111150009 Check ring GB/T305 62
240100049010 Controlled Handle;Transfer Box SG254.21.012
240100049078 oil- mixing driven gear assy SG254.21B.013
240100104452 Bush BLG2430
240100092991 oil- mixing driven gear SG254.21B.107-1
240100049031 Shift Fork shaft of clutch SG254.21.110
210101260070 Bolt GB/T5781 M12*40-4.8-Zn.D
240100049448 Shaft Assy; Main Clutch SG284.21B.011
240100075362 Main clutch shaft bush BLG2020
240100049017 Rocker Arm Assy SG254.21.018
210101260036 Bolt GB/T5781 M8*30-4.8-Zn.D
210801000389 O-ring GB/T3452.1 20*1.8
240100049012 Controlled Lever Weldment;Transfer Box SG254.21.013-1
240100048420 Right Pull Rod Joint RZ15.30.114
210101260012 Bolt GB/T5781 M10*20-4.8-Zn.D
240100049082 Spacer SG254.21B.104
240100047917 Driven Disc Assy of Clutch 18.21B.012
210201000257 Bearing 6203E(203E)
240100048419 Left Pull Rod Joint RZ15.30.113
240100049023 Locating Plate SG254.21.102
240100030886 Check Pin E304.42.113
210201000313 Bearing 6305EN(50305E)
210104250004 Screw M5x12 GB/T821 M10*45-33H
240100030891 Shift Fork Head; Transfer Case E304.42.120
240100049081 Spline Housing SG254.21B.103
240100057723 Outer Swing Arm Assembly, Clutch SG254.21.014-1
210101260038 Bolt GB/T5781 M10*30-4.8-Zn.D
210108100112 Pin GB/T879.1 8*40
240100049024 Fork Shaft; Transfer Case SG254.21.103
240400000722 Final drive assy SG254.39.001X
240100030349 Wheel Fastening nut MS300.39.114
210802000007 Oil seal JB/T2600 FB70*95*12
240100122291 Driven Gear SG254.39.110-1
240100049255 Paper seal II SG254.39.108
240100049251 Driving Shaft SG254.39.105
210201000320 Bearing 6307EN(50307E)
240100049257 Paper seal III SG254.39.109
240100049249 Paper seal I SG254.39.104
240100049254 Oil Seal Seatⅱ SG254.39.107
240100049246 Left semi-Axle Housing SG254.39.101
240100122290 Left Driving Gear Shaft SG254.39.106-1
210111150001 Check ring GB/T305 80
210802000326 Oil seal WPS60*85*8
240100049247 Right Half-Shaft shell SG254.39.102
240100030348 Wheel Fixing Screw MS300.39.113
240100049248 Oil Seal Seatⅰ SG254.39.103
240100049381 Lifter Assy SG254.55.001
240400000769 Pump oil pipe assy SG354-1.58.001YX
240100048282 Oil Pump CBN-E310H
240100099167 Oil Suction Pipe Weldment;Oil Pump SG354-1.58.011Y
210801000374 O-ring GB/T3452.1 20*2.65G
240100085881 Gusher Pipe Weldment;Oil Pump SG354.58.014
240400000767 Radiator Installation Assy. SG354.13Y.001ALX
240100117273 Water inlet Tube of Radiator YSD490T.13.107
240100117274 Water Outlet Tube of Radiator YSD490T.13.108
240100117256 Radiator assy. SG404.13Y.020AL
240400000752 Seat Installation Assy SG254.44.001BX
240100138213 Support Plate Weldment;Seat SG254.44.014E-3A
240100101029 Seat assembly SG254.44.001B
240400000746 Driving wheel assy SG304.32.001X
211002000104 Rim SG254.32.011
240400000829 Engine hood and instrument panel assy SG354.47.001YX
240100061869 Lower Cover;Instrument Panel SG254.47.104-2
210101280128 Bolt GB/T5783 M10*55-8.8-Zn.D
210108170308 Hinge pin GB/T882 16*40-B-Zn.D
240100049361 Portal frame connector bracket SG254.47.101
240100049480 Nameplate SG354.47.103
210101280081 Bolt GB/T5783 M6*30-8.8-Zn.D
210104210047 Screw M5x12 GB/T818 M8*20-4.8-Zn.D
240100053608 Engine Hood Assy SG354.47.012
240100061870 Rear Cover;Instrument Panel SG254.47.106-2
240100061868 Upper Cover;Instrument Panel SG254.47.102-2
240100054316 Front Mark SZ804.98.310
210110050143 Washer GB/T97.1 48-140HV-Zn.D
240100015808 Portal frame weldment SG254.47.040-1
240100049481 Icon SG354.47.105
240400000756 Accelerator control assy SG354.20.001YX
240100086313 Flexible Shaft bracket of accelerator SG354.20.301Y
210108010001 Cotter pin GB/T91 2*10-Zn.D
210103300024 Nut GB/T6176 M12*1.5-10-Zn.D
240100030598 Connecting Fork 15.20.119
240100004923 Disc Spring 75.20.107
240100087976 Manual accelerator Link bar SG250-2.20.103
240100117249 Pull Rod of foot accelerator SG254.20.104-1
240100049004 Friction Disc SG254.20.108
240100086312 Flexible Shaft assy of accelerator SG354.20.014Y
240100086311 Flame out wire assy SG254.20.014M
240100079380 Manual accelerator handle end SG254.20.016A
240100145869 SG254.20.021A SG254.20.021A
240100049005 Press Plate SG254.20.109
240100048999 Return Spring Suspension Loop SG254.20.102
240100030669 Release Spring E300.20.108
240100092352 Accelerator shaft weldment SG254.20.011-1
240100117247 Rocker Arm Assy SG254.20.020
240100048994 Manual accelerator axle weldment SG254.20.012-1
240400000738 Suspention mechanism installation assy SG254.56A.001X
240100102320 Left Lower Link Support SG254.56.101E-2
240100049386 Suspension Mechanism Assy SG254.56A.001
240100098890 Support Weldment;Right Anchoring Chain SG254.56.018-1A
240100098889 Support Weldment;Left Anchoring Chain SG254.56.017-1A
240100102319 Right Lower Link Support SG254.56.102E-2
240400000720 Hitch Device Assy SG254.35.001AX
240100049118 Drawing frame weldment SG254.35.020
240100100249 PTO hood SG254.35.101-2
240100049125 Retaining Pin SG254.35.201
240100117259 Traction Pin Assy SG404.35.020
240100117261 Traction Fork SG404.35.101
240100117260 Drawing Frame Weldment SG404.35.021
240100047744 Long Pin 15.35.203
240400000770 Air Brake Device SG354-1.73.001YX
240100096574 Air pump air outlet pipe assembly SG354-1.73.012
240100030594 Water Drain Valve 120-1104012-6
240100048379 CA-10 type safety valve LB007.2.3.0
240100094302 Air valve inlet pipe assembly SG254-1.73.013
240100020452 Pin 54.20.405
240100049413 Support Assy;Gas Holder SG254.73.018E
240100049407 Air pump assembly SG254.73.011E
240100049412 Gas Holder Weldment(with pipe joint) SG254.73.017E
240100049414 Tightening strip assy SG254.73.019E
240100094305 Thrust Rod SG254-1.73.109
240100149023 Air Brake Valve & Bracket Assy 18.73.090
240100094303 Airbag gas tube assembly SG254-1.73.014
240400000732 Guard board assy SG304.47.002X
240100018512 Left mud-proof board SG300.47.021
240100018513 Right Splash Guard SG300.47.022
240100028466 Hand Grab MS300-1.47.215
240400000726 Brake Assy SG254-1.43.001X
240100107452 Control Device; Hand Brake SG254.43.020-3
210110050088 Washer GB/T97.1 24-140HV-Zn.D
210714000003 Oil cup JB/T7940.1 M8*1
240100079390 Support weldment SG284.43.023-3
240100049319 Left Braking Rocker Assy SG254.43.028
240100122109 Pedal Weldment; Left Brake SG254.43.027-3A
240100086325 Link Joint SG254.43.130
240100047724 Pull Rod Of Brake 15.30.115
240100102321 Lower Right Brake Rocking Arm Assy SG254-1.43.029A
240100117265 Right Braker Assy SG404.43.012
240100085756 Rocker Arm of Hand Brake SG254-1.43.170
240100122108 Pedal Weldment;Right Brake SG254.43.026-2A
240100117264 Left Braker Assy SG404.43.011
240100087318 Brake shaft weldment SG254-1.43.025
210108100115 Pin GB/T879.1 10*45
240100095195 Front Axle Assy. 01010101A005
240100142250 Left End Transmission Assy. 02010401A053
240100096250 Retaining Ring 31114010071
240100128436 Sealing Gasket 031117010020/D=14
240100096253 1St-Rate Driving Bevel Gear 30303480002
240100009682 Hollow Bolt 14256/10184314-M14*45*1.5
Material code Part name Drawing Number
240100096254 1St-Rate Driven Bevel Gear 30303480001
210101280308 Bolt GB/T5783 M10*30-10.9-Zn.D
240100095609 Oil Seal Bush 31110050007
240100096256 Gasket 31108010022
240100096252 Driving Bevel Gear II 30303470002
210802000293 Oil seal JB/T2600 FB50*70*12
240100073417 Bush 31107010002
240100095608 Spline Flange 30410030006
240100096245 Upper Ending Cover 30809000062
240100096259 End Cover; Front Drive 30809000063
240100096257 Slide bearing sleeve 31110060010
240100096255 Main Pin Head 03040704A017
240100096249 Retaining ring of driving axle 31110040007
240100062809 Screw M5x12 1.40.211/5126628-FT
210201000717 Bearing 51106
240100095179 Main Pin Case 30106000027
240100096248 Driving wheel Axle 30402010002
240100029552 Felt oil seal 284.31.017-SP50*70*8/80*90*19
210201000225 Bearing 6010E(110E)
240100095184 Left final shell 03010700A017
240100096246 Steering arm 30205000041
240100096247 Gasket 31108020010
240100096251 Driven bevel gear II 30303470001
S20103010101 Axle Shell Assy and Central Drive Assy 20103010101
210503000036 Plug screw JB/T1000 M18*1.5
210103250003 Nut GB/T6172.1 M10-8
240100111872 Rear swing base assy 20119000017
240100083682 Dust-proof base 31701000018
20103010101 Central Transmission Assy. 030306050036/030306050029/020102010045/020107000017（254）
240100013341 Check Pin 12506/10837710-10
S30306050036 Dring Gear Assy; Differential 030306050036/030306050029/020102010045(254)
210201000130 Bearing 32006(2007106E)
240100097154 Bevel Gear Pair 030306050036/030306050029
240100100355 Stop Plate; Adjusting Nut 31102030016
240100084351 Lock Nut 31304030014
210201000132 Bearing 32009(2007109E)
210201000148 Bearing 32206(7506E)
240100096229 Spacer 31104050002
240100083620 Differencial Assy 20102010045
210101280630 Bolt GB/T5783 M6*10-8.8-Zn.D
240100096227 Adjusting Nut 31304050007
240100096228 Bevel Support Seat 20107000017
240100095186 Axle shell 30101010025
