Description

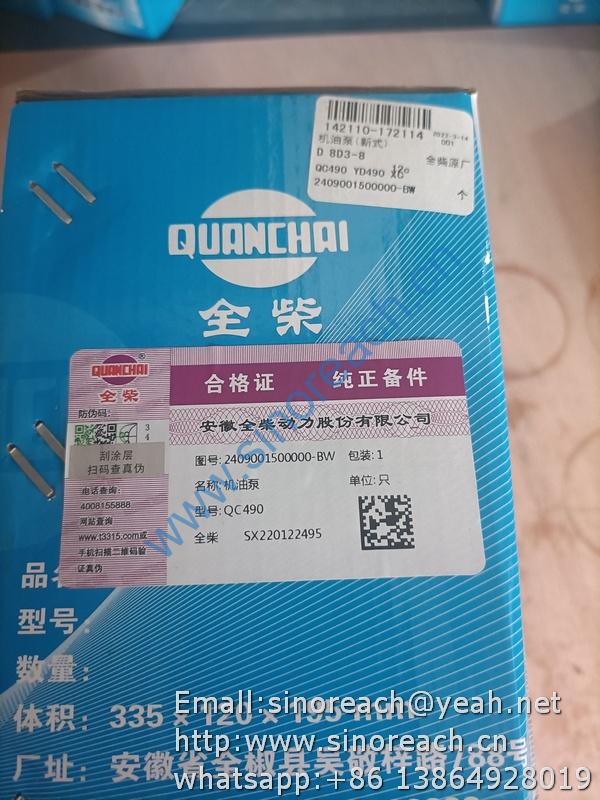

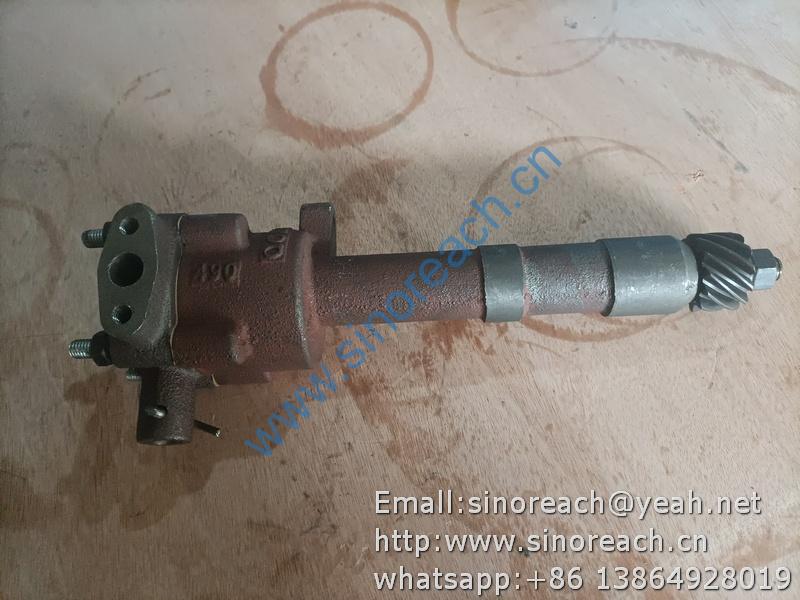

2409001500000 Oil pump for QUANCHAI QC490 spare parts

240100123633 Ventilation Exhaust Rubber Pipe YT4A2-T55.120021
240100007700 Oil Inlet Tube YTR4105T2.120001A
240100123622 Oil Distributor And Rear Pushrod Room Cap Component 4R120100-53
240300000007 Fuel Injector Assembly YT4A2.320000
240100094801 Fuel Injector Assembly BK.PB84P-32(PB84P30-001M)
240100007140 Fuel Injector Gasket R320001-51
240300000019 Water Pump Assembly YTR4105T6.5100AZ
210102030151 Double-screw bolt GB/T899 M10*95-8.8-Zn.D
240100007267 Water Pump Rear Cover Gasket YTR2105.510007
240100069993 Water Pump Assembly YTR4105T6.510000M
240300002621 Air Intake Pipe Assembly YT4A2-T55.220000
240100006435 Inlet Air Pipe Cover Gasket 4RG1.220002
240100006467 Cover; Air Inlet Pipe 4RT12.220004N
240100101783 Inlet Hose YTR4105T55.220005
240100066440 Name Plate YTR.220009-66
240100006501 Cover; Air Inlet Pipe 4RT62.220004
240100037290 Inlet Air Pipe 4RG1.220011
210101500098 Bolt GB21 M10*35-8.8-Zn.D
240100011468 Air Inlet Sub-Tube Gasket R.220003
240300001317 Oil Sump strainer YTR4105.420000
240100007231 Oil Suction Pipe Flange Gasket YTR.420001
210101500184 Bolt GB21 M8*20-8.8-Zn.D
240100007609 Suction Filter Welding Part YTR4105.420100-51
240100006496 Cylinder Head Cover Assy. 4RT62.110000A
240300000189 Thermostat Assembly YT4A2-T55S.5300AZ
240100007611 Thermostat Assembly YTR4105.530000
240100011920 Hose Φ16×280 4R.530003-51
240100117937 Clamp Q/12JH5143-2012/MS01(21-38)W4
240100008090 Thermostat Gasket 4R.530004-1
240100070109 CAMSHAFT ASSEMBLY 4RD.030000
210301040005 Semi-circular key GB/T1099 6*22-Zn.D
240100006409 Camshaft 4R.030011-51B
240100005784 Thrust Gasket; Camshaft R030004
240100007125 Tappet R030002
240100007161 Thrust Rod RD.030003
240300000009 ENGINE BODY YT4A2-T55S.020000
240100006406 Cover; Push Rod Chamber 4R.020008A
240100012211 Patch Q/YT31.1-1991-60-Zn.D
240100006696 Hollow Location Pin behind engine body 6RQ.020015
210503000081 Plug screw YTQ021.1 Z3/8″预涂
240100007004 Plug Screw LR.010209
240100007012 Crankcase Ventilation Pipe Component LR.020300
240100007123 location pin of engine top surface R.020021
240300000700 Pressure Relief Valve Assembly LR.412100-2
240100007703 Clip YTR4105T2.120023
240100007005 Main Shaft Shell LR.020041/42
240100065301 Cylinder Liner RAD.020001A
240100010945 Engine Body Machining Parts YTR4105T.020100
240100010926 Cylinder Liner Sealing Ring RA.020003
240100010930 Double end bolt R.020011FE
240100006701 Oil Pressure Sensor 6RQ2.020031
240100007124 Location pin of engine front surface R.020023
210503000130 Plug screw YTQ021.1 NPT1/8″涂胶
240100123203 Supply Water Joint Gasket R020017-51
240100006424 Draining Tube 4RCT5.020004FE
240100007006 Thrust Shell LR.020043/44
240100006316 Water Tank Drain Valve Assy. 1305C1-010
Material code Part name Drawing Number
240100007108 Sealing Gasket R.010017
210103220008 Cap nut GB/T923 M10-Zn.D
240100097695 Cover Plate 6RTⅢ.020028
240300000162 Fuel Filter Assembly YT4A2-T55S.3300AZ
240100008397 Fuel Filter Element CX0708-100
240100139447 Fuel Filter Base Assembly CX0708A-DZ
240300002555 Oil sump assy. YT4A2-T55FS-1.070000
210101500071 Bolt GB21 M10*40-8.8-Zn.D
210100080789 O Shape Seal Ring 35*3.5 YTQ.020.2.97
240100126625 Dipstick Couple Parts 4RTF.070200-53
240100007689 Oil Sump YTR4105T1.070001
210100010864 Drain Plug Assay 6RQJ.070100FE
210101500115 Bolt GB21 M10*45-8.8-Zn.D
240100124763 Sleeve; Lubricating Oil Dipstick 6RQ.070024-53
240100008085 Oil Sump Gasket YTR4105T1.070004
240300000701 Oil Pump Assemby YT4A2.4100AZ

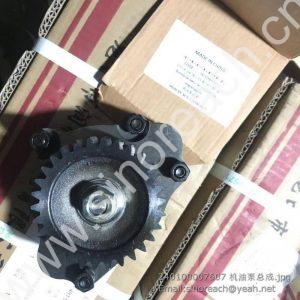

240100007607 Oil Pump YTR4105.410000-51
240100008068 Oil Pump Gasket YTR.410006
240100070239 Cylinder Head Assembly L4R.010000Y
240100005778 Lifting lug R.010009
240100007100 Gas valve spring R010003Y
240100007099 105 Air Outlet Valve R010002
240100100642 Side Water Outlet Cap RT.010021
240100007101 Valve Spring Upper Seat R010004Y
240100007003 Screw Plug; Press Sleeve LR010111
240100013507 Air valve revolver assy. R.010300FE
240100064115 Air valver rocker arm assy 4R.010200发一
240100007080 Cover Plate; Front Water Outlet Hole R010023-FE
240100007104 Valve Cap R010006
240100001227 Valve Oil Seal R.010019Y-1
210503000129 Plug screw YTQ021.1 NPT1/2″涂胶
210801000313 O-ring GB/T1235 30*3.1F
240100008055 Cover Plate Gasket R.010024
240100007098 105 Air Inlet Valve R010001Y
240100039593 Front lifting lug 6RT8.010009-FE
240100010893 Cylinder Head L4R.010101Y-1
240100012210 Bowl shape Patch YTQ031.2-28-Zn.D
240100010896 Bowl Type Expansion Plug R.010107
240100007112 Outlet Valve-Seat Ring R010103
240100008054 Gasket of water inlet pipe R.010013
240100007197 Gasket YFZ4105.010001
240100008020 Double end bolt R.010016
240100007002 Oil injector copper bush LR010109
240100133298 Stud;Clamp Plate Of Injector R.010018涂胶
210101510008 Bolt GB22 M10*80-8.8-Zn.D
240100005779 Cylinder Head Bolt Washer R.010012
240100117718 Cylinder Head Bolt RD.010007-52
240100006715 Water Return Hole Cap 6RTⅢ.010026
240100007105 Fuel Injector Press Plate R.010008
240100007102 Valve Collet R010005
240100007111 Inlet Valve-Seat Ring R010102Y
240100010895 Bowl shape Patch R.010105
240100111967 Cylinder Head Gasket L4R.010011-51WSM
240100007106 Inlet Valve Spring Distance Block R010015Y
240100007115 Bowl shape pitch R.010106
240100070240 Valve Guide R.010104BFE
240300002058 Exhaust Pipe Assy. YT4A2-T52S.230000
240100006514 Gasket; Muffler Bend Pipe 4RT68.230005
240100007138 Exhaust Manifold Gasket R.230002A
240100013517 Exhaust Connecting Pipe 4RT73.230004FE
240100006413 Exhaust Pipe 4R.230001
240100008058 Gasket; Muffler Bend Pipe R.230003A
240300002920 Starter Motor Assembly YT4A2-T55.610000
210110110022 Washer GB/T848 12-140HV-Zn.D
240100009114 Protective Cap 4RT62.610101FE
210101280022 Bolt GB/T5783 M12*50-8.8-Zn.D
240100011988 Engine Power Starter QDJ1408GM/J
240100104350 Brake Assy MF554.43G.001
240100030816 Pressure plate;Right brake E300.43.104
240100111511 Transition link weldment; brake ES554.43G.030
240100116480 Brake Transition Lever ES554.43G.130
240100002960 Bush E300.21.112
240100055823 Control Device; Hand Brake ES504-1.43.014
210108100157 Pin GB/T879.1 10*50
240100110314 Sleeve Weldment; Right brake shafe ES554.43G.028
240100030820 Washer E300.43.109
240100057831 Left Brake Case Assy E300.43.012
240100030822 Left Brake Case E300.43.121-2
240100013174 Crank Shaft Liner E300.43.114
240100054085 Linkage Board; Hand Brake ES504-1.43.601
240100030810 Left Crank Assy E300.43.014
240100059859 Crank Axle E300.43.116
240100015105 Left crank E300.43.117
240100057832 Right Brake Case Assy E300.43.013
240100030823 Right Brake Case E300.43.122-2
240100127966 Pedal Weldment; Left Brake ES554.43G.021-1
240100116468 Left brake pedal head weldment ES554.43G.023
240100060062 Linkage plate SZ550.43.112
240100116473 Plate Ⅱ ES554.43G.120
210110050051 Washer GB/T97.1 24-200HV-Zn.D
240100002950 O Ring E300.43.101
240100110311 Rocker Arm Weldment;Left Brake ES554.43G.025
210204000026 Steel ball Φ18000G100b
240100030808 Friction Disc Assembly; Brake E300.43.011
240100059862 Friction Bushing E300.43.152
240100059858 Steel backing friction plate E300.43.115
240100030815 Pressure plate;Left brake E300.43.103
240100051845 Pedal Shaft ES504-1.43.011
240100149151 Oil Drain Hole Washer E300.43.153A
240100030819 Shaft Sleeve E300.43.107
240100027419 Shift Block E300.43.106SZ
240100127965 Pedal Weldment;Right Brake ES554.43G.020-1
240100116467 Right brake pedal head weldment ES554.43G.022
240100129304 Upper Link Weldment; Brake ES554.43G.031
240100002905 Right Pull Rod Joint 15.30.114-YJ.001
210801000653 O-ring GB/T3452.1 F20*2.65
240100110315 Fixed Bracket Weldment ES554.43G.029
240100002935 Left Pull Rod Joint 15.30.113-ZJ.001
240100149305 Drain Plug ES500.43.120A
