Description

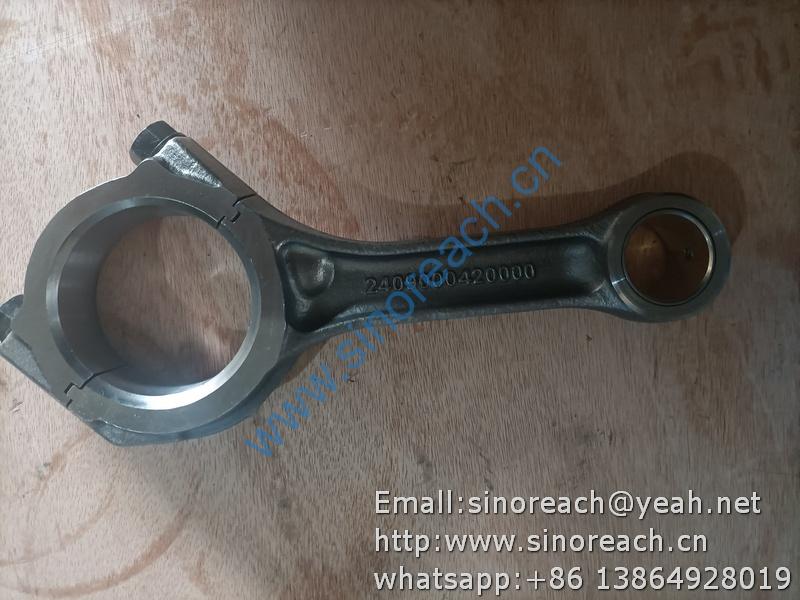

2409000420000 Connecting rod for QUANCHAI QC490 SPARE PARTS

1
GB/T5783-2000
螺栓M8×35 Bolt M8×35
4
2
GB/T93-1987
垫圈8 Washer 8
4
3
GB/T97.1-2002
垫圈8 Washer 8
4
4
QC490Q(DI)-17100
机油管 Oil pipe part
1
5
QC490Q(DI)-17005
机油管垫片 Gasket of oil pipe
2

1
QC490Q(DI)-16000A
呼吸器总成 Ventilator assembly
1
2
QC490Q(DI)-16007
出气软管 Export gas tube
1
3
Q68026
卡箍φ22 Clip φ22
1
4
GB/T3452.1-1992
O型密封圈23.6X3.55
3
5
GB/T5783-2000
螺栓M8X20 Bolt M8×20
3
6
GB/T93-1987
垫圈M8 Washer 8
3
7
GB/T97.1-2002
垫圈M8 Washer 8
3

1
GB/T6170-1988
螺母M10 Nut M10
2
2
GB/T97.1-2002
垫圈10 Washer 10
2
3
GB/T93-1987
垫圈10 Washer 10
2
4
GB/T899-1998
螺柱M10×25 Stud M10×25
2
5
QC490Q(DI)-08002
排气总管垫片 Gasket for exhaust total pipe
1
6
QC490Q(DI)-03003
排气管垫片 Gasket
4
7
QC490Q(DI)-08001A
排气管 Exhaust pipe
1
8
GB/T97.1-2002
垫圈8 Washer 8
8
9
GB/T93-1987
垫圈8 Washer 8
8
10
GB/T5783-2000
螺栓M8×25 Blot M8×25
4
