Description

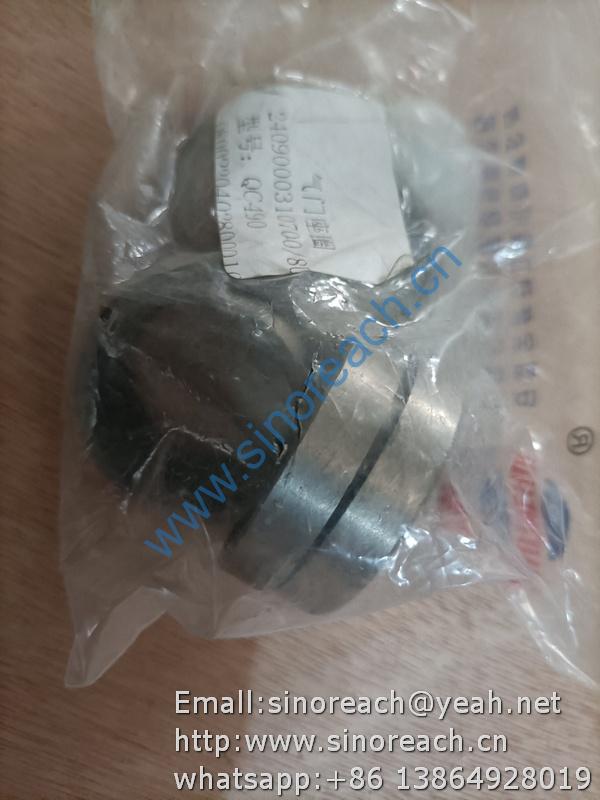

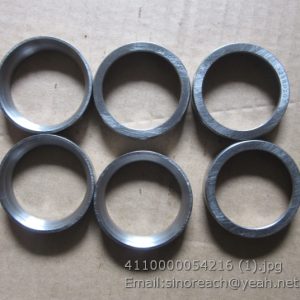

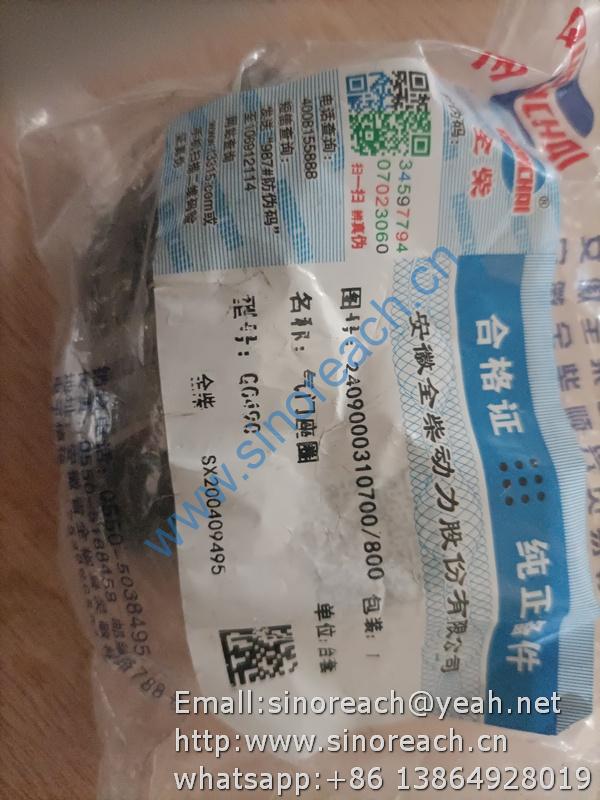

2409000310700 2409000310800 Valve seat for QUANCHAI QC490 SPARE PARTS

20
QC490Q(DI)-01002A
气缸套 Cylinder liner
4
21
QC490Q(DI)-01007A
封水圈 Water seal ring
8
22
QC490Q(DI)-01004A
气缸盖螺栓（乙） Cylinder head bolt (Ⅱ)
14
23
QC490Q(DI)-01003A
气缸盖螺栓（甲） Cylinder head bolt (I)
1
24
QC490Q(DI)-01005A-1 气缸盖垫片 Cylinder hear gasket
1
25
QC490Q(DI)-01001A
机体 Cylinder block
1
26
QC490Q(DI)-01013
碗形塞φ30 Plug φ30
1
27
QC490Q(DI)-01012A
进水管垫片 Washer of water pipe
1
28
QC490Q(DI)-JT-001
进水管 Water pipe
1
29
QC490Q(DI)-01009-1
凸轮轴中衬套 Mid-bushing of camshaft
1
30
QC490Q(DI)-01017-1
凸轮轴前衬套 Preceding bushing of camshaft
1
31
GB/T5783-2000
螺栓M8×25 Bolt M8×25
1
32
QC490Q(DI)-01026
主轴瓦（上） Main shaft bearing (bottom)
1
33
QC490Q(DI)-01025
主轴瓦（下） Main shaft bearing (upper)
2
34
QC490Q(DI)-01024
主轴承盖 Main shaft bearing cover
10
35
QC490Q(DI)-01022
曲轴止推片（上） Upper thrust bushing
5
36
QC490Q(DI)-01021
曲轴止推片（下） Lower thrust bushing
3
37
QC490Q(DI)-01020
后主轴承盖 Rear Main shaft bearing cover
5
38
QC490Q(DI)-01029
主轴承螺栓垫圈 Washer
12
不装
39
QC490Q(DI)-01016A
主轴承盖螺栓 Bolt
12

1
QC490Q(DI)-04002
第一道气环 First ring
4
2
QC490Q(DI)-04003
第二道气环 Second ring
4
3
QC490Q(DI)-04100
油环 Ring body
4
4
QC490Q(DI)-04001C
活塞 Piston
4
5
GB/T893.2-1986
挡圈29 Snap ring 29
8
6
QC490Q(DI)-04004
活塞销 Piston pin
4
7
QC490Q(DI)-04201A
连杆衬套 Connecting rod bushing
4
8
QC490Q(DI)-04202
连杆体 Connecting rod
4
9
QC490Q(DI)-04203
连杆轴瓦 Connecting rod bearing
8
10
QC490Q(DI)-04204
连杆盖 Connecting rod cover
4
11
QC490Q(DI)-04205
连杆螺栓 Connecting rod bolt
8
