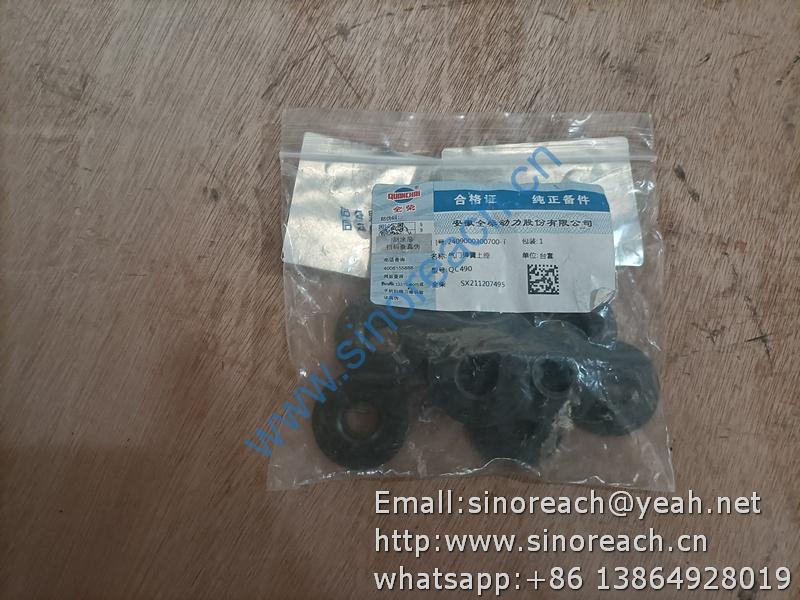

2409000300700 Valve spring upper seat for QUANCHAI QC490 spare parts

1
QC490Q(DI)-03007
气门弹簧上座 Upper valve spring seat
8
2
QC490Q(DI)-03006
气门锁夹 Valve collect
16
3
QC490Q(DI)-03015B
排气门 Exhaust valve
4
4
QC490Q(DI)-03014
进气门 Intake valve
4
5
QC490Q(DI)-03005
气门内弹簧 Inner valve spring
8
6
QC490Q(DI)-03004
气门外弹簧 Outer valve spring
8
7
GB/T6170-1988
螺母M8 Nut M8
8
8
GB/T93-1987
垫圈8 Washer 8
9
N85Q（DI）-02016
喷油器压板螺栓 Fuel injection blot
8
10
N85-02203
气门间隙调整螺母 Adjusting nut for valve clearance
8
11
QC490Q(DI)-03203
气门间隙调整螺钉 Adjusting screw for valve clearance
8
12
GB/T73-1985
螺钉M10×1×10 Bolt M10×1×10
2
13
GB/T894.1-1986
挡圈20 Snap ring 20
2
14
QC490Q(DI)-03201
垫片 Gasket
8
15
QC490Q(DI)-03212
气门摇臂衬套 Valve rocker arm bushing
8
16
QC490Q(DI)-03211
气门摇臂 Valve rocker arm
8
17
QC490Q(DI)-03202
前摇臂座 Preceding rocker arm seat
4
18
QC490Q(DI)-03205
气门摇臂弹簧 Rocker arm spring
3
吊耳（前） Stationary ring (anterior)
1
吊耳（后） Stationary ring (posterior)
1
20
GB/T93-1987
垫圈8 Washer 8
47
21
GB/T5783-2000
螺栓M8×20 Blot M8×20
4
22
N85-03102
碗形塞φ30 Plug φ30
4
