Description

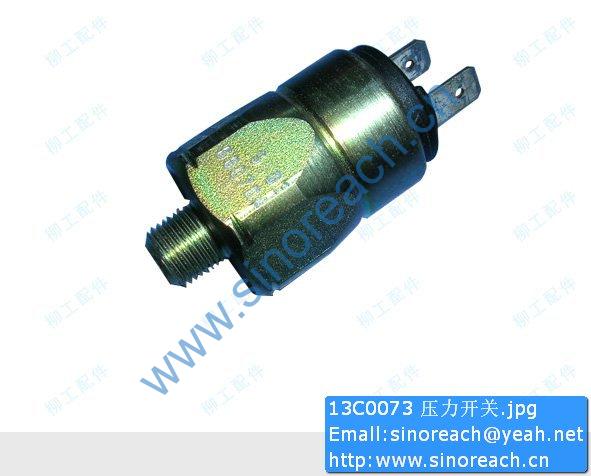

13C0073 pressure switch for LIUGONG PART

32B0148 Air filter clogging alarm indicator; assembly parts
06B0006 Washer; GB93-87; 8; 65Mn
00D5119 Mounting plate; WELD
31B0011 Relay; ASSY
04B0198 screw; GB818-85; M4×12-4.8-Zn.D; STL
06B0097 Washer; GB97.1-85; 4-140HV-Zn.D; STL
06B0022 Washer; GB93-87; 4; 65Mn
74A1805 24V power supply nameplate
37B0230 Cigarette lighter; ASSY
46C0988 Side mounting plate assembly; assembly parts
06B0022 Washer; GB93-87; 4; 65Mn
35B0243 Fuel level/Voltmeter; ASSY
34B0082 Additional contact block; ASSY
34B0032 Brake solenoid valve switch; ASSY
06B0097 Washer; GB97.1-85; 4-140HV-Zn.D; STL
36D0382 side mounting plate
04B0281 Screw; GB818-85; M4×20-4.8-Zn.D; STL
04B0074 Screw GB819-85; M6×12-4.8-Zn.D
74A1377 Emergency brake nameplate; PVC sticker
03B0296 Nut; GB6170-86; M4-8-Zn.D; STL
46C3916 joystick assembly; ASSY
04B0293 screw; GB/T 819.1-2000; M4×16-4.8-Zn.D (black); ST
46C6499 battery circuit; ASSY
74A7250 label; PVC SELF-ADHESIVE
08C3522 cable; ASSY
46C3929 negative switch installation assembly; ASSY
21A5917 mounting plate; Q195
34B0297 negative switch; ASSY
06B0001 Washer; GB97.1-85; 10-140HV-Zn.D; STL
00B0005 Bolt; GB5783-86; M10×20-8.8-Zn.D; STL
06B0002 Washer; GB93-87; 10; 65Mn
08C3523 cable; ASSY
06B0001 Washer; GB97.1-85; 10-140HV-Zn.D; STL
06B0002 Washer; GB93-87; 10; 65Mn
03B0053 Nut; GB6170-86; M10-8-Zn.D; STL
05B0072 Double-ended stud; 45
08C3524 cable; ASSY
08C3521 cable; ASSY
37B0108 battery; 120Ah/850CCA; ASSY
08C3263 cable; ASSY
46C6500 Insurance installation assembly; ASSY
06B0017 Washer; GB93-87; 5; 65Mn
08C3179 connecting cable; ASSY
08C3170 Connecting cable; ASSY
04B0234 screw; GB818-85; M3×16-4.8-Zn.D; STL
06B0101 Washer; GB93-87; 3; 65Mn
06B0133 Washer; GB97.1-85; 3-140HV-Zn.D; STL
37B0776 Fuse; LITTELFUSE 30A; ASSY
06B0006 Washer; GB93-87; 8; 65Mn
37B0707 fuse holder; BF1/MIDI, single
06B0005 Washer; GB97.1-85; 8-140HV-Zn.D; STL
00B0102 Bolt; GB5783-86; M8×35-8.8-Zn.D; STL
37B0777 Fuse; LITTELFUSE 40A; ASSY
37B0716 Fuse; ASSY
37B0763 Fuse; LITTELFUSE 60A; ASSY
37B0717 Fuse; ASSY
37B0715 Fuse holder; ASSY
08C3168 connecting cable; ASSY
04B0006 screw; GB818-85; M5×10-4.8-Zn.D; STL
06B0066 Washer; GB97.1-85; 5-140HV-Zn.D; STL
00D8436 Mounting board; WELD
83A1224 Guard ring; YI6364
08C3513 cable; ASSY
46C4139X1 lamp assembly; ASSY
46C4142 Right front lamp assembly; ASSY
38B0187 Horn; ASSY
06B0006 Washer; GB93-87; 8; 65Mn
04D0979 Right lamp bracket; WELD
43D0618 Front cover; WELD
00B0007 Bolt; GB5783-86; M8×16-8.8-Zn.D; STL
06B0008 Washer; GB93-87; 12; 65Mn
06B0005 Washer; GB97.1-85; 8-140HV-Zn.D; STL
00B0075 Bolt; GB5783-86; M8×20-8.8-Zn.D; STL
00B0035 Bolt; GB5783-86; M12×35-8.8-Zn.D; STL
32B0136 Right front combination lamp; ASSY
46C4143 Left front lamp assembly; ASSY
38B0187 Horn; ASSY
06B0006 Washer; GB93-87; 8; 65Mn
04D0980 Left lamp bracket; WELD
43D0618 Front cover; WELD
00B0007 Bolt; GB5783-86; M8×16-8.8-Zn.D; STL
06B0008 Washer; GB93-87; 12; 65Mn
06B0005 Washer; GB97.1-85; 8-140HV-Zn.D; STL
00B0075 Bolt; GB5783-86; M8×20-8.8-Zn.D; STL
00B0035 Bolt; GB5783-86; M12×35-8.8-Zn.D; STL
32B0137 Left front combination lamp; ASSY
46C3975 Right rear lamp assembly; ASSY
03B0021 Nut; GB6170-86; M8-8-Zn.D; STL
06B0002 Washer; GB93-87; 10; 65Mn
06B0001 Washer; GB97.1-85; 10-140HV-Zn.D; STL
00B0056 Bolt; GB5783-86; M10×16-8.8-Zn.D; STL
32B0138 Right rear small lamp group; assembly parts
06B0005 Washer; GB97.1-85; 8-140HV-Zn.D; STL
06B0006 Washer; GB93-87; 8; 65Mn
00B0021 Bolt; GB5783-86; M6×12-8.8-Zn.D; STL
04B0059 screw; GB818-85; M8×20-4.8-Zn.D; STL
04D1623 light box; WELD
10A1917 Cover plate; assembly parts
06B0024 Washer; GB97.1-85; 6-140HV-Zn.D; STL
06B0003 Washer; GB93-87; 6; 65Mn
38B0172 Reversing alarm; AGGL
