Description

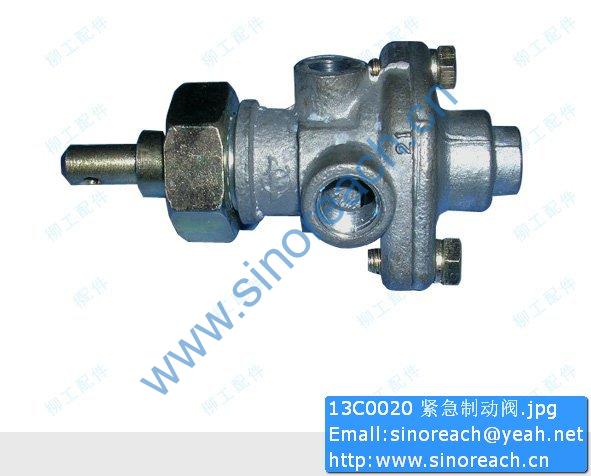

13C0020 Emergency brake valve for LIUGONG PART

14A2468 Mounting plate Q235
12B0300 O-ring; GB3452.1-92; 31.5×3.55; YI9424
01A0393 Connector block
06B0002 Washer; GB93-87; 10; 65Mn
00B0018 Bolt; GB5782-86; M10×70-8.8-Zn.D; STL
06B0008 Washer; GB93-87; 12; 65Mn
00B0017 Bolt; GB5783-86; M12×30-8.8-Zn.D; STL
01B0104 Bolt; GB5783-86; M12×110-8.8-Zn.D; STL
12C0165 Flow Amplification Valve
03B0003 Nut; GB6170-86; M12-8-Zn.D; STL
06B0007 Washer; GB97.1-85; 12-140HV-Zn.D; STL
04A0637 flange
12C2099 Check valve assembly; ASSY
12V0503 O-ring; 24.99×3.53; YI9424
10D4627 steel pipe assembly; WELD
10D4628 steel pipe assembly; WELD
10D4626 Steel pipe assembly; WELD
10D4625 steel pipe assembly; WELD
09C0690 pipe clamp; ASSY
23A7566 board; Q235
03B1065 Nut; Hexagonal steel 46/35
15D0613 connector; CONNECTOR
72A0628 pressure plate; 45
09C0775 pipe clamp; ASSY
14A6205 board; Q235
02B0254 U-shaped bolt; 20
01B0121 Bolt; GB5782-86; M8×65-8.8-Zn.D; STL
14A6214 Backing plate; Q235
06B0005 Washer; GB97.1-85; 8-140HV-Zn.D; STL
06B0006 Washer; GB93-87; 8; 65Mn
03B0021 Nut; GB6170-86; M8-8-Zn.D; STL
31C0867 flange joint; ASSY
07C2098TS hose assembly; ASSY
06C5017TS hose assembly; ASSY
06C5016TS hose assembly; ASSY
12V0438 O-ring; 32.92×3.53; NBR
12B0565 O-ring; 37.69×3.53; YI9424
06C6737 hose assembly; ASSY
06C5015TS hose assembly; ASSY
12C3092 Pressure reducing valve assembly; ASSY
00B0064 Bolt; GB5783-86; M10×55-8.8-Zn.D; STL
06B0002 Washer; GB93-87; 10; 65Mn
06B0001 Washer; GB97.1-85; 10-140HV-Zn.D; STL
32C0172 Tee connector; ASSY
12C0438X1 Pressure reducing valve; fittings
00B0064 Bolt; GB5783-86; M10×55-8.8-Zn.D; STL
06B0001 Washer; GB97.1-85; 10-140HV-Zn.D; STL
06B0002 Washer; GB93-87; 10; 65Mn
12C0438X0 Pressure reducing valve
57A0036 Pressure regulating gasket
78A0013 valve body
75A0172 Pressure regulating spring
65A0020 Spool; 20CrMnTi
57A0036 Pressure regulating gasket
12B0353 O-ring; GB3452.1-92; 19×2.65; YI9424
00A1129 connector; 35
32C0122 Tee connector; ASSY
44C0114 Pressure measuring connector; assembly parts
72A0630 pressure plate; 45
06B0008 Washer; GB93-87; 12; 65Mn
30C1232 connector; ASSY
00B0017 Bolt; GB5783-86; M12×30-8.8-Zn.D; STL
06C6316 Hose assembly; ASSY
06C3524 Hose assembly; ASSEM
32C0219 Three-way adjustable joint
32C0394 Tee connector; ASSY
30C0224 connector; assembly parts
30C0226 connector; assembly parts
06C9309 Hose assembly; ASSY
06C6016 Hose assembly; ASSY
00C1179 Rotary bucket oil cylinder pipeline; ASSY
04B0220 screw; GB70-85; M12×30-8.8-Zn.D; STL
00B0035 Bolt; GB5783-86; M12×35-8.8-Zn.D; STL
07C0517 Hose assembly; assembly parts
06B0002 Washer; GB93-87; 10; 65Mn
44C0022 Pressure measuring connector; assembly parts
00B0033 Bolt; GB5782-86; M12×70-8.8-Zn.D; STL
00B0005 Bolt; GB5783-86; M10×20-8.8-Zn.D; STL
72A0010 pressure plate; ZG270-500
12B0565 O-ring; 37.69×3.53; YI9424
10D4169 steel pipe assembly; WELD
10D4168 Steel pipe assembly; WELD
10D1344 steel pipe assembly
72A0082 flange; ZG270-500
07C0518 Hose assembly; assembly parts
06B0008 Washer; GB93-87; 12; 65Mn
27A0297 pipe clamp; Q235
00C0936 Multifunctional pipeline; ASSY
06C3722TS hose assembly; ASSY
06B0002 Washer; GB93-87; 10; 65Mn
06B0001 Washer; GB97.1-85; 10-140HV-Zn.D; STL
03B1065 Nut; Hexagonal steel 46/35
00B0056 Bolt; GB5783-86; M10×16-8.8-Zn.D; STL
00B0035 Bolt; GB5783-86; M12×35-8.8-Zn.D; STL
00B0012 Bolt; GB5783-86; M10×25-8.8-Zn.D; STL
00A2663 connector; 45
72A0630 pressure plate; 45
27A0679 pipe clamp; Q235
23A5806 Bent plate; Q235
12B0287 O-ring; GB3452.1-92; 36.5×3.55; YI9424
