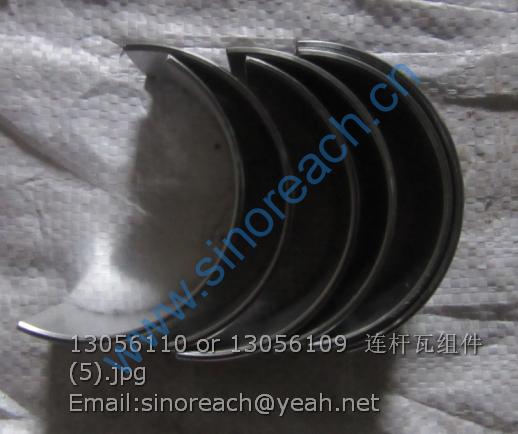

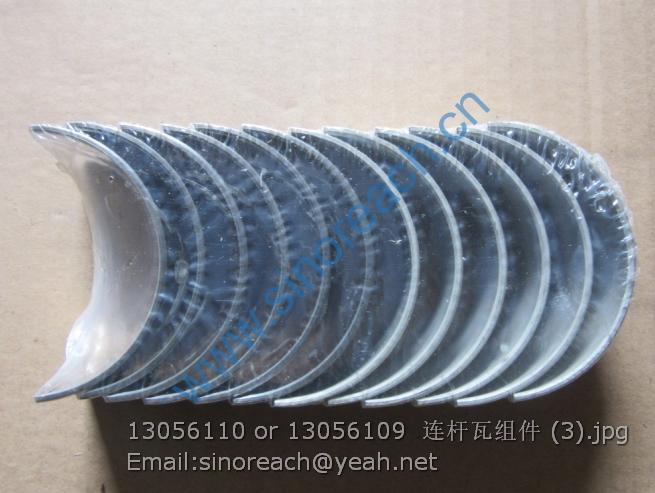

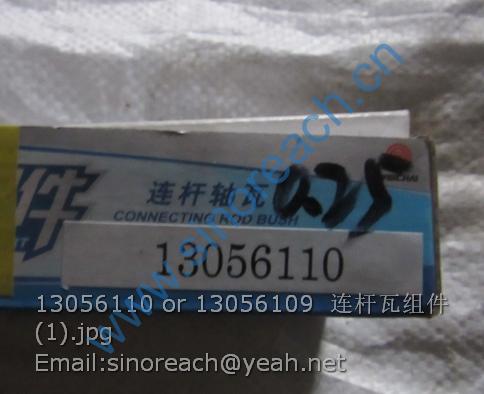

13056110 13056109 Weichai Deutz Engine Connecting Bearing 13025625

01112445 12 六角头螺栓
Hexagon bolt
2 13037828 6 摇臂座组件
Rocker arm stand assembly
3 13032055 6 气缸盖分总成 Cylinder head subassembly
4 01113472 12 双头螺柱 Stud
5 12163182 12 垫片 Gasket
6 13020378 30 2型六角螺母 Hexagon nut (II)
7 12167216 18 垫片 Gasket
8 13032347 12 双头螺柱 Stud
9 01152500 6 双头螺柱 Stud
10 13026701 6 气缸垫片 Cylinder gasket
11 01104736 12 内六角锥形螺塞
Inner hexagon srew plug

12164698 24 气门锁夹 Valve collet
2 12164645 12 气门弹簧座
Valve spring seat
3 01222009 12 气门弹簧
Valve spring
4 01222051 12 气门弹簧
Valve spring
5 13024293 12 气门弹簧下座 Valve spring seat(lower)
6 13023391 12 气门阀杆密封套 Seal washer of valve stem
7 13028585 6 气缸盖组件 Cylinder head assembly
8 12159608 6 排气门 Exhaust valve
9 12159606 6 进气门 Intake valve

13026864 6 气门导管
Valve guide
2 13021199 18 碗形塞
Corehole plug
3 13031513 6 气缸盖 Cylinder head
4 13026866 6 排气阀座 Exhaust valve seat
5 13026865 6 进气阀座 Intake valve seat
6 13026863 6 进气门导管 Intake valve guide1 12159630 6 摇臂座 Rocker arm stand
2 12165314 24 蝶型弹簧垫圈
Butterfly spring washer
3 01107724 12 轴用弹簧挡圈 Circlip for shaft
4 13037827 12 摇臂分组件

1 01112261 2 六角头螺栓
Hexagon bolt
2 01178307 2 弹簧垫圈
Spring washer
3 13051323 1 法兰 Flange
4 13051718 1 垫片 Gasket
5 13031471 1 凸轮轴 Camshaft
6 13024211 1 空压机传动齿轮
Driving gear of air compressor
7 12159721 1 扇形板 Sector gear
8 01157294 2 六角法兰承面带齿螺栓 Toothed bolt
9 12189556 1 凸轮轴正时齿轮
Camshaft timing gear
10 12189558 1 法兰
Flange
11 01139989 4 内六角圆柱头螺钉
Inner hexagon screw
12 01157293 4 六角法兰承面带齿螺栓 Toothed bolt

1 13026760 1 机油泵分总成
Oil pump subassembly
2 12159468 1 垫片 Gasket
3 01321455 1 自锁螺母 Self-lock nut
4 01157293 1 六角法兰承面带齿螺栓 Toothed bolt
5 01156339 1 六角法兰承面带齿螺栓 Toothed bolt
