Description

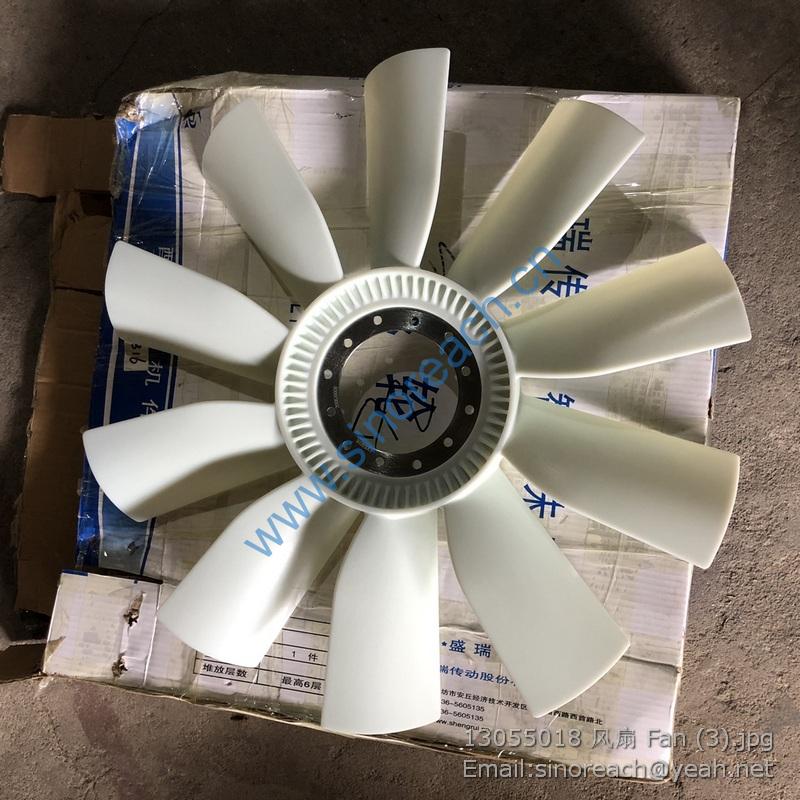

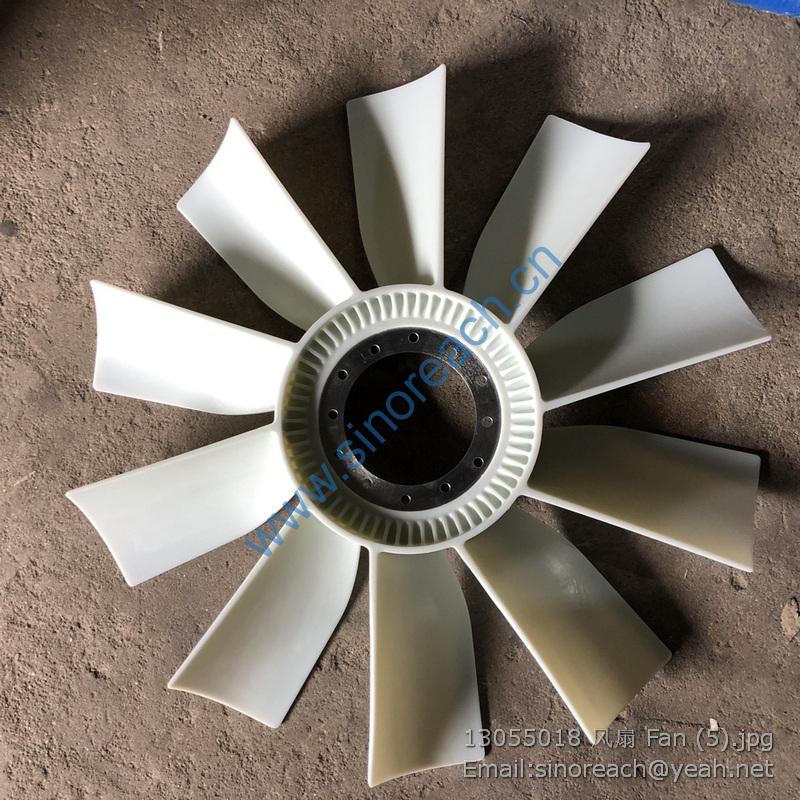

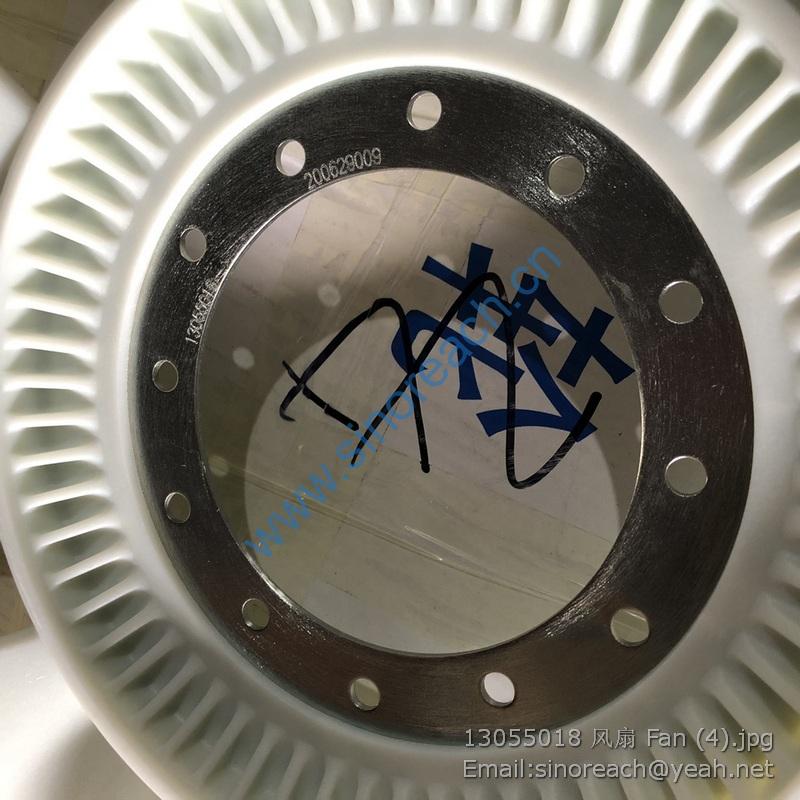

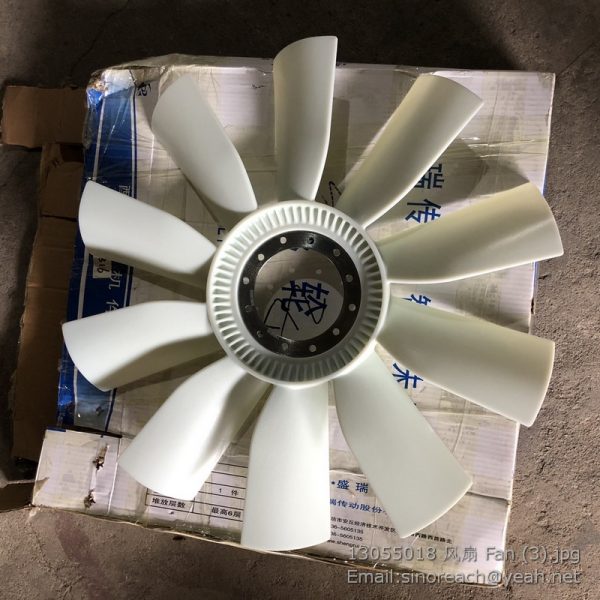

13055018 fan 4110000909027

1 4110001948125 内六角圆柱头螺钉M10*45-12.9GB70 Screw Y 6
2 4110000054024 弹簧垫圈Q40310 01178365 Washer Y 6
3 4110000909031 硅油减振器13034087 Silicone oil absorber-13034087 Y 1
4 4110001948024 曲轴皮带轮13054983 Crankshaft pulley 13054983 Y 1
5 4110000909071 连接盘13054574 Connecting plate-13054574 Y 1
6 4110000054227 平垫圈Q40110 01152752 Washer Y 6
7 4110000054024 弹簧垫圈Q40310 01178365 Washer Y 6
8 4110001948126 双头螺柱M10*25-10.9GB898 Stud Y 6
9 4110000846023 2型六角螺母01143995 Nut 1143995 Y 6
10 4110000054023 弹簧垫圈Q40308 01177981 Washer Y 6
11 4110000054203 内六角圆柱头螺钉M8*25-12.9GB70 01110571 Screw Y 6
12 4110000909027 风扇13055018 Fan-13055018 Y 1
13 4110000909030 硅油风扇离合器612630060285 Silicone oil fan clutch-612630060285 Y 1

1 4110000846062 活塞13032095 Cylinder piston Y 1
2 4110000909123 梯桶钢油环13026702 Piston ring Y 1
3 4110000846133 梯形桶面环13026703 Ring Y 1
4 4110000909169 锥面环13022349 Ring Y 1
5 4110000054082 活塞销12152378 Gudgeon pin Y 1
6 4110000054027 弹性挡圈12151395 Retaining ring Y 2
7 4110000846167 连杆盖 13053282 Cover Y 1
8 4110000846166 连杆体 13055259 Link rod Y 1
9 4110000054124 连杆衬套12159598 Bushing Y 1
10 4110000846169 弹性圆柱销 01154162 Pin Y 1
11 4110000054126 连杆螺栓12167047 Screw Y 2
12 4110000909131 连杆下瓦12273939 Half liner-12273939 Y 1
13 4110000846128 四元电镀连杆瓦上瓦13024279 Bearing shell Y 1
14 4110000909122 连杆上瓦13024279 Half liner-13024279 Y 1
15 4110000054128 连杆组件12160519 Connecting rod Y 1
16 4110001948127 活塞连杆结合组 Connecting rod Y 1
17 4110000189007 连杆瓦组件13025625 Bearing shell Y 1



1 4110000846116 气缸盖组件13028585 Cover parts 13028585 Y 1
2 4110000054243 气门阀杆密封套13023391 Sealing sleeve Y 2
3 4110000054237 气门弹簧01222009 Valve spring Y 2
4 4110000054238 气门弹簧01222051 Valve spring Y 2
5 4110000054096 进气门12159606 Inlet valve Y 1
6 4110000054215 排气门12159608 Exhaust valve Y 1
7 4110000054240 气门弹簧座12164645 Spring seat Y 2
8 4110000054244 气门锁夹12164698 Clamp Y 4
9 4110000054239 气门弹簧下座13024293 Spring seat Y 2
10 4110000846040 垫片12167216 Washer Y 3
11 4110000054040 垫片12163182 Washer Y 2
12 4110000054138 I型六角螺母M10-10 13020378 Nut Y 5
13 4110000846006 双头螺柱01152500 Bolt,double nod 1152500 Y 1
14 4110000054281 双头螺柱Q1201030 01113472 Stud Y 2
15 4110000846126 双头螺柱13032347 Stud Y 2
16 4110000054211 内六角锥形螺塞ZM22*1.5-5.8-DIN906 01104736 Plug Y 2
17 4110000909091 气缸垫片13026701 Spacer Y 1

1 4110000054294 凸轮轴13031471 Camshaft Y 1
2 4110000846080 空压机传动齿轮13024211 Transmission gear,air compressure 13024211 Y 1
3 4110000909127 凸轮轴正时齿轮12189556 Camshaft gear Y 1
4 4110000054055 法兰12189558 Flange Y 1
5 4110000054199
内六角圆柱头螺钉M10*1.25*25-12.9DIN912
01139989
Screw Y 4
6 4110000054133
六角法兰承面带齿螺栓AM8*22-12.9H2009
01157293
Screw Y 4
7 4110000054273 扇形板12159721 Plate Y 1
8 4110000054135 六角法兰承面带齿螺栓Q1800816 01157294 Screw Y 2
