Description

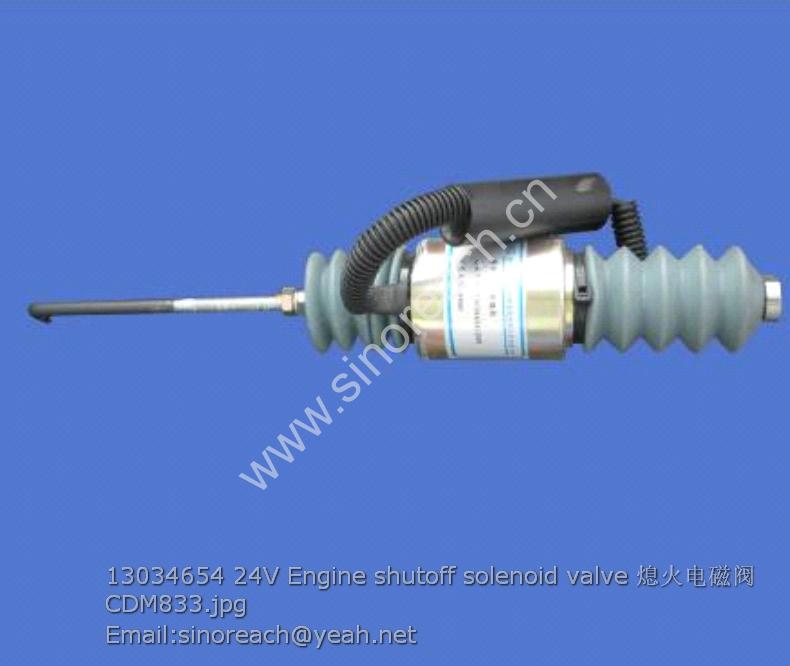

13034654 24V Engine shutoff solenoid valve FOR LONKING CDM833
| 24 | 90B-B/22/22-Ⅱ-L600 | 变速泵至滤油器胶管 | Hose from transmission pump to oil filter | 1 | |
| 25 | LG30F.02Ι.02-009 | 滤油器回油接头 | Filter oil-return connector | 1 | 302021D |
| 26 | JB1002-77 | 密封垫圈22 | Seal washer 22 | 1 | |
| 27 | LG853.02.02.01 | 双变滤油器 | Oil filter | 1 | YL-98-00 |
| 28 | GB/T5782 | 螺栓M8×45 | Bolt M8×45 | 4 | |
| 29 | GB/T6170 | 螺母M8 | Nut M8 | 4 | |
| 30 | GB/T97.1 | 垫圈M8 | Washer M8 | 8 | |
| 31 | LG30F.02Ι.02-002 | 滤油器进油接头 | Filter oil-inlet connector | 1 | LG30F.02020A |
| 32 | JB/T1002 | 密封垫圈30 | Seal washer 30 | 1 | |
| 33 | φ19×2×110 | 回油胶管 | Oil-return hose | 1 | |
| 34 | JB/T8870-1999 | 管夹(φ22-32) | Pipe clip(φ22-32) | 4 | |
| 35 | GB5628.2-85 | 接头体A5 | Adapter A5 | 1 | |
| 36 | JB1002 | 密封垫圈10 | Seal washer 10 | 1 | |
| 37 | LG853.15.35 | 变速阀压力表油管（1300） | Transmission valve pressure gauge tube | 1 | |
| 38 | φ19×2×250 | 回油胶管 | Oil-return hose | 1 |
| 1 | GB/T894.1 | 挡圈60 | Spacer 60 |
| 2 | GB/T276-94 | 轴承60×95×18 | Bearing 60×95×18 |
| 3 | YJ31502A-12 | 被动齿轮 | Driven gear |
| 4 | YJ31502A.3-3 | 轴套 | Shaft sleeve |
| 5 | YJ31502A.4-1 | 泵驱动轴总成（Ⅱ） | Pump shaft assembly Ⅱ |
| 6 | GB/T893.1 | 挡圈95 | Spacer 95 |
| 7 | YJ31502D.1-1 | 泵驱动轴总成（Ⅰ） | Pump shaft assembly Ⅰ |
| 8 | 外方堵头ZG1/2〃 | Square plug ZG1/2〃 | |
| 9 | GB/T5783 | 螺栓M8×12 | Bolt M8×12 |
| 10 | GB/T93 | 垫圈8 | Washer 8 |
| 11 | YJSW315-4AI-5 | 盖板 | Cover board |
| 12 | GB/T825 | 螺钉M12 | Screw M12 |
| 13 | YJ31502D-5 | 壳体 | Housing body |
| 14 | YJ31502A-14 | 止口环 | Stop ring |
| 15 | GB3452.1-92 | O型密封圈42.5×2.65 | O-ring 42.5×2.65 |
| 16 | JB/T2600-80 | 油封SD70×95×12 | Oil seal SD70×95×12 |
| 17 | YJ31502C-10 | 端盖 | End cover |
| 18 | GB/T93 | 垫圈10 | Washer 10 |
| 19 | GB/T5782 | 螺栓M10×55 | Bolt M10×55 |
| 20 | YJ31502C-9 | 轴套 | Shaft sleeve |
| 21 | YJ31502D-6 | 输出法兰 | Output flange |
| 22 | YJ31502C-7 | 挡圈 | Spacer |
| 23 | GB/T889 | 螺母 | Nut |
