Description

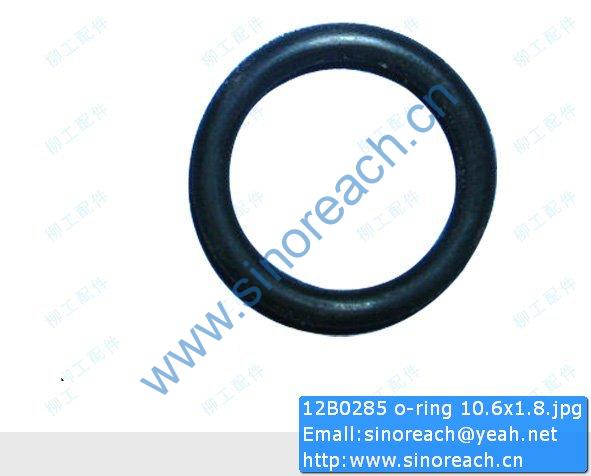

12B0285 o-ring 10.6×1.8 for LIUGONG part

00C1863 09C0056 pipe clamp; ASSY
09C0056 21A0180 Lower pipe clamp; Q235
09C0056 21A0181 Upper pipe clamp; Q235
09C0056 83A0070 Rubber ring; Rubber I-1
09C0056 06B0008 Washer; GB93-87; 12; 65Mn
09C0056 00B0013 Bolt; GB5783-86; M12×40-8.8-Zn.D; STL
00C1863 44C0022 Pressure measuring connector; assembly parts
00C1863 44C1020 Pressure reducing valve assembly; ASSY
44C1020 21A4598 connection board; Q235
44C1020 00B0075 bolt; GB5783-86; M8×20-8.8-Zn.D; STL
44C1020 06B0006 Washer; GB93-87; 8; 65Mn
44C1020 12C2511 Pressure reducing valve; ASSY
12C2511 78A0302 valve body; HT250
12C2511 12B0353 O-ring; GB3452.1-92; 19×2.65; YI9424
12C2511 12B0285 O-ring; GB3452.1-92; 10.6×1.8; YI9424
12C2511 00A0061 connector
12C2511 65A0020 Spool; 20CrMnTi
12C2511 55A2663 spring seat; 45
12C2511 12B1578 O-ring; ISO 6149-3:1993; 23.6×2.9; YI9424
12C2511 75A0456 spring; SSW/G2
12C2511 57A0938 Adjusting shim; 45
12C2511 00A4920 pipe joint; 45
00C1863 15D0187 pipe joint; welded parts
15E0844X1 00C1862 Fuel tank pipeline; ASSY
00C1862 00A0434 connector; 35
00C1862 12B0299 O-ring seal; GB1235-76; 36×3.1; YI9424
00C1862 32C0025 connector
00C1862 00A0217 pipe joint; 35
00C1862 12B0291 O-ring seal; GB1235-76; 22×2.4; YI9424
00C1862 12B0370 O-ring; GB3452.1-92; 15×1.8; YI9424
00C1862 12B0342 O-ring seal; GB1235-76; 20×2.4; YI9424
00C1862 12B0286 O-ring; GB3452.1-92; 23.6×2.65; YI9424
00C1862 05A0029 Plug; 35
00C1862 10D7093 Steel pipe assembly; WELD
00C1862 06B0002 Washer; GB93-87; 10; 65Mn
00C1862 01B0033 Bolt; GB5782-86; M10×80-8.8-Zn.D; STL
00C1862 09C0466 Pipe clamp assembly; assembly parts
09C0466 21A3677 Upper pipe clamp; Q235
09C0466 21A3675 Lower pipe clamp; Q235
09C0466 83A0633 Rubber ring; YI6364
09C0466 00B0035 Bolt; GB5783-86; M12×35-8.8-Zn.D; STL
09C0466 06B0008 Washer; GB93-87; 12; 65Mn
00C1862 07C1910 Hose assembly; ASSY
00C1862 04A1790 flange; 45
00C1862 30C0226 connector; assembly parts
00C1862 12B0285 O-ring; GB3452.1-92; 10.6×1.8; YI9424
00C1862 12C0460 check valve; fittings
00C1862 00B0035 Bolt; GB5783-86; M12×35-8.8-Zn.D; STL
00C1862 44C0114 Pressure measuring connector; assembly parts
00C1862 30C0224 connector; assembly parts
00C1862 04A0269 Flange pressure plate; steel
00C1862 06B0008 Washer; GB93-87; 12; 65Mn
00C1862 01B0160 Bolt; GB5782-86; M12×100-8.8-Zn.D; STL
00C1862 12B0303 O-ring; ISO 3601-1.2002; 56×3.55; NBR-90
00C1862 10D6636 Steel pipe assembly; WELD
00C1862 12B0292 O-ring; GB3452.1-92; 21.2×1.8; YI9424
00C1862 03B0063 screw plug; 45
20E0503 Braking system; ASSY
20E0503 48D0629 shield; WELD
20E0503 45C0467 Accumulator installation assembly; ASSY
45C0467 00D7367 bracket; WELD
45C0467 02B0067 U-shaped bolt; Q235
45C0467 06B0008 Washer; GB93-87; 12; 65Mn
45C0467 00B0011 bolt; GB5783-86; M12×25-8.8-Zn.D; STL
45C0467 06B0006 Washer; GB93-87; 8; 65Mn
45C0467 03B0021 Nut; GB6170-86; M8-8-Zn.D; STL
45C0467 06B0007 Washer; GB97.1-85; 12-140HV-Zn.D; STL
45C0467 56A0161 pad; YI9424
45C0467 00A0519 connector
45C0467 12B0285 O-ring; GB3452.1-92; 10.6×1.8; YI9424
45C0467 13C0076 Accumulator; 1.6L; ASSY
20E0503 06C8254 Hose assembly; ASSY
20E0503 13C0575 Brake valve assembly; ASSY
13C0575 36B1070 socket; three cores; AGGL
13C0575 12B0285 O-ring; GB3452.1-92; 10.6×1.8; YI9424
13C0575 00A0318 connector; 35
13C0575 30B0547 pressure switch; PMN10A18K (5bar); ASSY
13C0575 33C0192 connector; ASSY
13C0575 13C0074 Pressure measuring connector
13C0575 32C0747 Tee connector; ASSY
13C0575 06B0008 Washer; GB93-87; 12; 65Mn
13C0575 00B0017 bolt; GB5783-86; M12×30-8.8-Zn.D; STL
13C0575 13C0535 brake valve; ASSY
13C0575 06B0001 Washer; GB97.1-85; 10-140HV-Zn.D; STL
13C0575 00B0029 bolt; GB5783-86; M10×40-8.8-Zn.D; STL
13C0575 03B0053 Nut; GB6170-86; M10-8-Zn.D; STL
13C0575 06B0002 Washer; GB93-87; 10; 65Mn
13C0575 34C0380 plug; fitting
13C0575 31C1251 transition joint; ASSY
13C0575 12B0370 O-ring; GB3452.1-92; 15×1.8; YI9424
13C0575 00A0324 connector
13C0575 12B0262 O-ring; 16.36×2.21; LGY/1E668
13C0575 12A5794 mounting plate; Q235
20E0503 00B0005 bolt; GB5783-86; M10×20-8.8-Zn.D; STL
20E0503 06B0002 Washer; GB93-87; 10; 65Mn
20E0503 17D0066 Pipe clamp assembly; welding parts
20E0503 12B0291 O-ring seal; GB1235-76; 22×2.4; YI9424
20E0503 06C7501 Hose assembly; ASSY
20E0503 66C0757 Hose assembly; ASSY
