Description

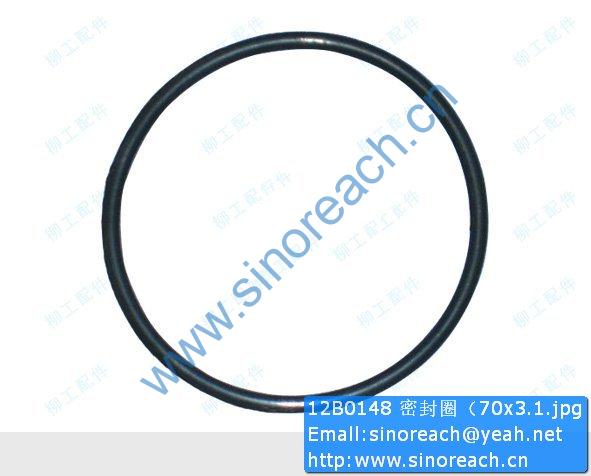

12B0148 sealing ring 70×3.1 for LIUGONG part

10C0754 55A0449 retaining ring; 45
10C0754 03B0383 nylon lock nut CB084245-3; M42×2
10C0754 50A0054 Piston; 45
10C0754 80A0125 OK-shaped sealing ring
10C0754 12B0060 O-ring; GB3452.1-92; 92.5×3.55; YI9424
10C0754 80A0126 Support ring
10C0754 13D0449X1 Cylinder block assembly; WELD
10C0754 61A0208 piston rod; 45
10C0754 53A0791 Cylinder head; 45
10C0754 13B0320 sealing ring φ60×75.5×6
10C0754 12B0062 O-ring; GB3452.1-92; 40×3.55; YI9424
10C0754 13B0268 Support ring
10C0754 12J0010 O-ring; GB3452.1-92; 100×2.65; YI9424
10C0754 13B0266 sealing ring; 60×70×10; YI9424
10C0754 06B0015 Washer; GB93-87; 16; 65Mn
10C0754 01B0469 Bolt GB5785-86; M16×1.5×60-10.9-Zn.D
10C0754 13B0667 Dust ring; AGGL
15E0844X1 00C1584 Steering control line; ASSY
00C1584 15D0351 pipe joint; welded parts
00C1584 12C0015 Pressure reducing valve; fittings
12C0015 06B0002 Washer; GB93-87; 10; 65Mn
12C0015 12B0285 O-ring; GB3452.1-92; 10.6×1.8; YI9424
12C0015 12C0015X0 Pressure reducing valve
12C0015X0 78A0013 valve body
12C0015X0 75A0172 Pressure regulating spring
12C0015X0 65A0020 Spool; 20CrMnTi
12C0015X0 57A0036 Pressure regulating gasket
12C0015X0 12B0353 O-ring; GB3452.1-92; 19×2.65; YI9424
12C0015X0 00A0061 connector
12C0015 06B0001 Washer; GB97.1-85; 10-140HV-Zn.D; STL
12C0015 00B0064 Bolt; GB5783-86; M10×55-8.8-Zn.D; STL
00C1584 06C6774 Hose assembly; ASSY
00C1584 09C0069 pipe clamp; fittings
09C0069 21A0942 Upper pipe clamp; Q235
09C0069 21A0943 Lower pipe clamp; Q235
09C0069 83A0122 Rubber ring; YI6364
09C0069 06B0008 Washer; GB93-87; 12; 65Mn
09C0069 00B0035 Bolt; GB5783-86; M12×35-8.8-Zn.D; STL
00C1584 44C0022 Pressure measuring connector; assembly parts
00C1584 06C6775 Hose assembly; ASSY
00C1584 12B0285 O-ring; GB3452.1-92; 10.6×1.8; YI9424
00C1584 06C6668 Hose assembly; ASSY
00C1584 06C6787 Hose assembly; ASSY
00C1584 06C6666 Hose assembly; ASSY
15E0844X1 00C1561 bucket oil cylinder pipeline; ASSY
00C1561 23A1093 fixed plate; Q235
00C1561 07C2447 Hose assembly; ASSY
00C1561 10D5360 Steel pipe assembly; WELD
00C1561 00B0012 Bolt; GB5783-86; M10×25-8.8-Zn.D; STL
00C1561 27A0046 pipe clamp; Q235
00C1561 12B0445 O-ring; 32.92×3.53; NBR-90
00C1561 10D5357 steel pipe assembly; WELD
00C1561 10D5399 Steel pipe assembly; WELD
00C1561 72A0628 pressure plate; 45
00C1561 10D5701 Steel pipe assembly; WELD
00C1561 03B0053 Nut; GB6170-86; M10-8-Zn.D; STL
00C1561 88A0208 U-shaped bolt; Q235
00C1561 06B0008 Washer; GB93-87; 12; 65Mn
00C1561 06B0002 Washer; GB93-87; 10; 65Mn
00C1561 04B0251 Screw; GB70-85; M12×35-10.9-Zn.D; STL
00C1561 72A0630 pressure plate; 45
00C1561 10D5697 Steel pipe assembly; WELD
00C1561 12B0224 O-ring; GB3452.1-92; 23.6×1.8; YI9424
00C1561 10D5370 Steel pipe assembly; WELD
00C1561 12B0821 O-ring; SAE J515:2010; 37.69×3.53; NBR-90
00C1561 06B0001 Washer; GB97.1-85; 10-140HV-Zn.D; STL
00C1561 00B0019 Bolt; GB5783-86; M10×30-8.8-Zn.D; STL
00C1561 44C0022 Pressure measuring connector; assembly parts
00C1561 07C2443 Hose assembly; ASSY
00C1561 00B0018 Bolt; GB5782-86; M10×70-8.8-Zn.D; STL
15E0844X1 10C0063X1 bucket cylinder assembly
10C0063X1 10C0063X0 bucket cylinder
10C0063X0 80A0131 guide belt
10C0063X0 80A0130 Guide belt
10C0063X0 76A0082 Retaining ring; spring steel wire φ1.6
10C0063X0 14D0244 Piston rod; WELD
10C0063X0 55A0089 Bushing
10C0063X0 53A0217 Cylinder head; HT250
10C0063X0 50A0056 Piston; 45
10C0063X0 34C0019 Lock nut CB085255-3; M52×2
10C0063X0 13D0104X1 Cylinder block assembly
10C0063X0 13B0158 Y-shaped sealing ring; polyurethane
10C0063X0 13B0129 Dust ring; assembly
10C0063X0 13B0127 sealing ring; polyurethane
10C0063X0 13B0073 sealing ring; 160×139×8; AGGL
10C0063X0 12B0205 O-ring; GB3452.1-92; 150×5.3; YI9424
10C0063X0 12B0088 O-ring; GB3452.1-92; 48.7×3.55; YI9424
10C0063X0 01B0059 Bolt GB5785-86; M22×2×120-10.9-Zn.D
10C0063X0 01B0058 Bolt GB5785-86; M22×2×80-10.9-Zn.D
10C0063X0 00B0042 Washer; GB93-87; 22; 65Mn
10C0063X1 35C0003 Sealing ring; glued parts
15E0844X1 44C1017X1 pump assembly; ASSY
44C1017X1 12B0114 O-ring; GB3452.1-92; 26.5×3.55; YI9424
44C1017X1 44C0022 Pressure test connector; assembly parts
44C1017X1 00B0019 bolt; GB5783-86; M10×30-8.8-Zn.D; STL
44C1017X1 12B0037 O-ring; GB3452.1-92; 118×3.55; YI9424
44C1017X1 10D6602 steel pipe assembly; WELD
44C1017X1 06B0002 Washer; GB93-87; 10; 65Mn
44C1017X1 01B0100 Bolt; GB5782-86; M10×65-8.8-Zn.D; STL
44C1017X1 03B0067 screw plug; 45
