Description

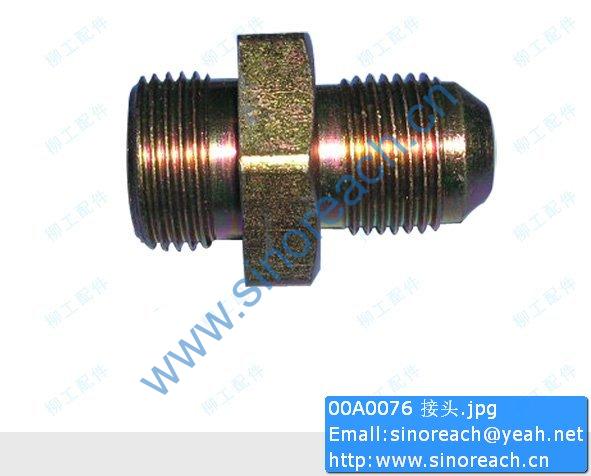

00A0076 connector for liugong part

D16A-107-17 SP111452 fan belt wheel
D16A-128-05 Fan connection plate
D16A-136-04 SP111456 output pulley
Q/SC622-M12*30 Hexagon flange bolts
Q/SC622-M8*45 Hexagon Flange Bolt
D02A-307-01 SP101306 gasket
D20-000-30 SP101486 water pump assembly
D22-105-01 SP101492 Socket pin
D24A-107-02a SP111400 rubber inlet elbow
Q/SC1302-52~76 Throat Hoop
Q/SC622-M8*50 Hexagon Flange Bolt
Q/SC622-M8*55 Hexagon Flange Bolt
D06A-002-33 Torsional vibration damper
D06A-109-30 SP101414 shock absorber bolt
D11-102-13 SP101430 integral alternator
D11-104-01 SP101434 spacer
D11-105-31 SP111384 stay
Q/SC622-M10*100-10.9 Hexagon flange bolts
Q/SC622-M10*30 Hexagon flange bolts
D06B-108-30 SP104916 Flywheel bolt
D33-103-01 SP101547 Left front support
GB/T97.2-14-200HV-Y flat washers
Q/SC622-M12*30 Hexagon flange bolts
D16A-003-03 SP101450 Tensioner parts
D16A-121-39+B Tensioner fixing plate
GB/T5783-M8*20 Hexagon head bolts
Q/SC622-M10*80-10.9 Hexagon flange bolts
D00-006-01 SP101255 dipstick parts
D02A-136-02 Diesel hand pump cover
D16A-106-02 SP101453 fan tape
Q/SC622-M8*25 Hexagon Flange Bolt
D33-104-01 rear support
Q/SC622-M12*30 Hexagon flange bolts
D02A-166-01 SP111348 screw plug (Z1/8″)
D17-002-02 SP101464 oil filter parts
D33-102-01 SP101546 Right front support
Q/SC622-M12*30 Hexagon flange bolts
GB/T6177-M12-Y Hexagon flange nuts
D04-164-01 trademark
D12-309-01b nameplate
GB/T827-2.5*6-L3 nameplate rivets
D00-279-03+B warning signs
D00-279-07+B warning signs
D02A-190-01 Adhesive label
D04-319-01A+B sign
D06B-001-78 Flywheel and starting ring gear assembly parts
D00-117-18 intake elbow
D00-146-01 SP101264 Air intake elbow gasket
D00-173-01 Exhaust elbow gasket
D24A-005-30 SP101495 “DCA4” Water Filter Parts
GB/T6170-M8-Y Type I Hexagon Nut
GB/T97.2-10-200HV-Y flat washers
GB/T97.2-8-200HV-Y flat washers
Q/SC1302-91~114 Throat Hoop
Q/SC598-8*16 copper washer
Q/SC622-M10*30 Hexagon flange bolts
Q/SC622-M8*25 Hexagon Flange Bolt
Q/SC646-89*80 rubber water pipe
D02C-149-02 Flywheel shell opening cover
D02C-151-02 Flywheel shell opening cover gasket
Q/SC622-M8*12 ​​Hexagon Flange Bolt
D02C-102-03 Starting motor connecting flange
D02C-108-02 SP101323 Starter motor gasket
D02C-109-02 SP101324 gasket
D02C-110-01 SP111363 Twelve-point head bolt
D11-101-03b SP101427 starter
GB/T97.2-16-200HV-Y flat washers
D42-104-30a SP111419 clamp
D42-107-31 clamp band
Q/SC622-M6*12 Hexagon flange bolts
D00-230-05b Connecting elbow handle
D59-103-02a SP111468 tension spring
761G-26-062 SP106298 low pressure oil pipe
D00-034-01 SP101257 oil-water separator assembly parts
D00-165-08 Fixed throttle cable bracket
D00-240-03 Inlet pipe of oil transfer pump
D00-241-01 SP111299 fuel return pipe
D04-150-01 SP111371 clamp band
Q/SC622-M10*35 Hexagon flange bolts
D00-140-01 SP111328 spacer
D00-154-07 SP111330 heat insulation board
D00-005-30+B Air filter bracket welding parts
D00-014-08 Muffler bracket welding parts
D00-118-29+B Exhaust elbow
D00-121-01 sealing ring
D00-222-01 SP111336 pressure block
GB/T97.2-10-200HV-Y flat washers
GB/T97.2-8-200HV-Y flat washers
Q/SC622-M10*25 Hexagon flange bolts
Q/SC622-M10*50 Hexagon flange bolts
Q/SC622-M8*25 Hexagon Flange Bolt
D00-145-01 SP101263 Air filter indicator connector
KLG-14j-000 SP112148 air filter assembly
XSG-08-000 Muffler combination group
D42-500-01 SP111318 Oil and Gas Separator Outlet Pipe
Q/SC1302-18~32 hose clamp
Q/SC622-M8*30 Hexagon Bolt
D13-001-01 SP101442 clamp parts
D17-002-02 SP101464 oil filter parts
D24A-007-02 “DCA” inspection box
