Description

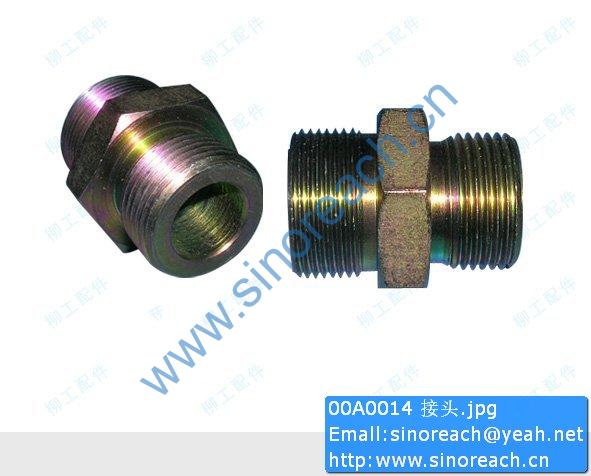

00A0014 connector for LIUGONG spare parts
D03-300-04+A Return pipe 1 D03-001-40A
D03-308-01+A ฮฉ-shaped bead 1 D03-001-40A
D03-101-34A+B Oil pan 1 D03-001-40A
D05-000-30+A Piston connecting rod assembly 6 D6114ZG14B+DB0456-ZJ
B00001039 SP121541 Circlip for hole-A type 2 D05-000-30
D05-108-31Y+A SP111449 Inscribed conical ring (Yizheng) 1 D05-108-01A
D05-002-31Y+A SP111446 Oil ring parts (Yizheng) 1 D05-002-01A
D05-107-31Y+A SP111448 Trapezoidal barrel surface ring (Yizheng) 1 D05-107-01A
D05-112-01+A SP101407 Piston pin 1 D05-000-30
D05-101-30+A SP101399 Piston 1 D05-000-30
D05-101-30B+B Piston 1 D05-101-30
D05-101-30M+A Piston 1 D05-101-30
D05-113-31+A SP121925 Connecting rod bearing 2 D05-000-30
D05-001-30A+A SP101394 Connecting rod machining parts 1 D05-000-30
D05-103-30A+B Connecting rod cover 1 D05-001-30A
D05-102-30A+B Connecting rod body 1 D05-001-30A
D05-104-30+A SP101402 Connecting rod bushing 1 D05-001-30A
D05-105-30+A SP101404 Connecting rod bolt 2 D05-001-30A
D05-106-01A+A SP101405 Connecting rod nut 2 D05-001-30A
D06A-000-53+B crankshaft shock absorber assembly 1 D6114ZG14B+DB0456-ZJ
D06A-101-34+B SP121930 crankshaft 1 D06A-000-53
D06A-109-30+A SP101414 shock absorber bolt 4 D06A-000-53
D06A-110-01+A SP101415 cylindrical pin 1 D06A-000-53
B00000102 SP121487 cylindrical pin 1 D06A-000-53
D06A-002-33+B SP121926 Torsional vibration damper 1 D06A-000-53
D06A-106-01+A Shock absorber inertia block 1 D06A-002-33
D06A-105-31+A Rubber ring 1 D06A-002-33
D06A-104-32+A Inner ring of shock absorber 1 D06A-002-33
D13-000-42+C Exhaust pipe assembly 1 D6114ZG14B+DB0456-ZJ
D13-101-38+A SP101444 Exhaust pipe 1 D13-000-42
D13-102-30B+B SP101445 Turbine inlet gasket 1 D13-000-42
D13-103-01+A SP111389 Stud bolt 4 D13-000-42
D13-114-31+A SP121974 Turbine outlet cover 1 D13-000-42
D13-304-01+A SP101447 Turbocharger interface nut 4 D13-000-42
B00000318 Hex nut 4 D13-000-42
D13-113-02+A SP111200 Turbine outlet cover gasket 1 D13-000-42
D13-303-01+A SP111451 Stud bolt 4 D13-000-42
D24A-000-30A+E Water pipe and water filter assembly 1 D6114ZG14B+DB0456-ZJ
D24A-115-02+C SP101501 Straight pipe joint 2 D24A-000-30A
D24A-005-30+A SP101495 “DCA4” water filter component 1 D24A-000-30A
D22-105-01+A SP101492 Socket pin 2 D24A-000-30A
B00001575 SP121592 hose clamp 2 D24A-000-30A
D24A-112-30A+A SP101498 water filter fixing plate 1 D24A-000-30A
D24A-110-30A+A SP101497 Outlet pipe 1 D24A-000-30A
B00001563 SP121586 Hose clamp 4 D24A-000-30A
D02A-164-01+B Hexagon socket screw plug (Z1/2) 1 D24A-000-30A
D24A-116-32+A SP101503 Water filter connecting hose 1 D24A-000-30A
D24A-006-01+A Water filter cover part 1 D24A-000-30A
D24A-113-01+C Water filter cover 1 D24A-006-01
D24A-114-01+A SP101500 water filter connector 1 D24A-006-01
D24A-118-01+A SP101504 Shut-off valve 2 D24A-006-01
B00002167 SP121674 Hexagon flange bolt 2 D24A-000-30A
D24A-135-02+A SP122023 sheath spring 1 D24A-000-30A
D24A-116-37+A SP122020 Water filter inlet hose 1 D24A-000-30A
B00002139 SP121662 Hexagon flange bolt 4 D24A-000-30A
D24A-107-02A+A SP111400 Rubber water inlet elbow 1 D24A-000-30A
D12-000-169+B intake pipe assembly 1 D6114ZG14B+DB0456-ZJ
B00002114 SP121651 Hexagon flange bolt 2 D12-000-169
D12-305-02+A cover plate 1 D12-000-169
D02B-300-01+A SP101317 Hexagon flange bolt 4 D12-000-169
B00002142 SP121663 Hexagon flange bolt 2 D12-000-169
B00001539 SP121577 Spring clamp 2 D12-000-169
B00001710 SP121599 Hexagon socket screw plug 1 D12-000-169
B00001545 SP111422 Composite sealing hard washer 2 D12-000-169
B00001729 SP121604 Hexagon head plug 1 D12-000-169
B00002137 SP121660 Hexagon flange bolt 8 D12-000-169
B00002134 SP121658 Hexagon flange bolt 4 D12-000-169
B00002139 SP121662 Hexagon flange bolt 3 D12-000-169
B00001814 SP121612 Copper washer 2 D12-000-169
B00001836 SP121618 Copper washer 1 D12-000-169
B00001849 Copper washer 1 D12-000-169
B00002177 SP121675 Hinge bolt 1 D12-000-169
D12-002-05+B SP121955 Smoke limiter hose assembly 1 D12-000-169
D12-300-11+B SP121961 intake pipe 1 D12-000-169
D12-104-37+A SP101439 Rubber connecting pipe 1 D12-000-169
D12-301-11+A SP101440 compressor outlet pipe 1 D12-000-169
D12-304-01+A SP111387 Spacer 2 D12-000-169
D12-308-01+B Air inlet gasket 2 D12-000-169
D02A-164-01+B Hexagon socket screw plug (Z1/2) 1 D12-000-169
B00001724 SP121600 Hexagon head screw plug 2 D12-000-169
D12-306-03A+B bracket 1 D12-000-169
D06B-000-111+A Flywheel assembly 1 D6114ZG14B+DB0456-ZJ
D06B-001-78+A SP121937 Flywheel and starting ring gear assembly parts 1 D06B-000-111
D06B-102-74+A SP121938 Flywheel 1 D06B-001-78
D06B-103-01+B SP121939 starting ring gear 1 D06B-001-78
D06B-108-30+A SP104916 Flywheel bolt 8 D06B-000-111
B00001308 SP121564 Flat washer 8 D06B-000-111
D22-000-30A+B Thermostat assembly 1 D6114ZG14B+DB0456-ZJ
D22-101-30C+A SP101489 Thermostat body 1 D22-000-30A
D22-105-01+A SP101492 Socket pin 2 D22-000-30A
B00000121 SP121490 Cylindrical pin 2 D22-000-30A
D02A-164-01+B Hexagon socket screw plug (Z1/2) 1 D22-000-30A
D22-103-30A+B Gasket 1 D22-000-30A
D22-102-06+B SP122017 Thermostat parts 1 D22-000-30A
D22-102-05+B SP122016 Thermostat parts 1 D22-000-30A
D09-000-30C+A Camshaft assembly 1 D6114ZG14B+DB0456-ZJ
D06A-110-01+A SP101415 cylindrical pin 1 D09-000-30C
D09-101-30E+C SP101426 Camshaft 1 D09-000-30C
D07-000-37+A Transmission gear assembly 1 D6114ZG14B+DB0456-ZJ
D07-101-30A+A SP101420 crankshaft gear 1 D07-000-37
D07-102-02+A SP101421 Camshaft gear 1 D07-000-37
